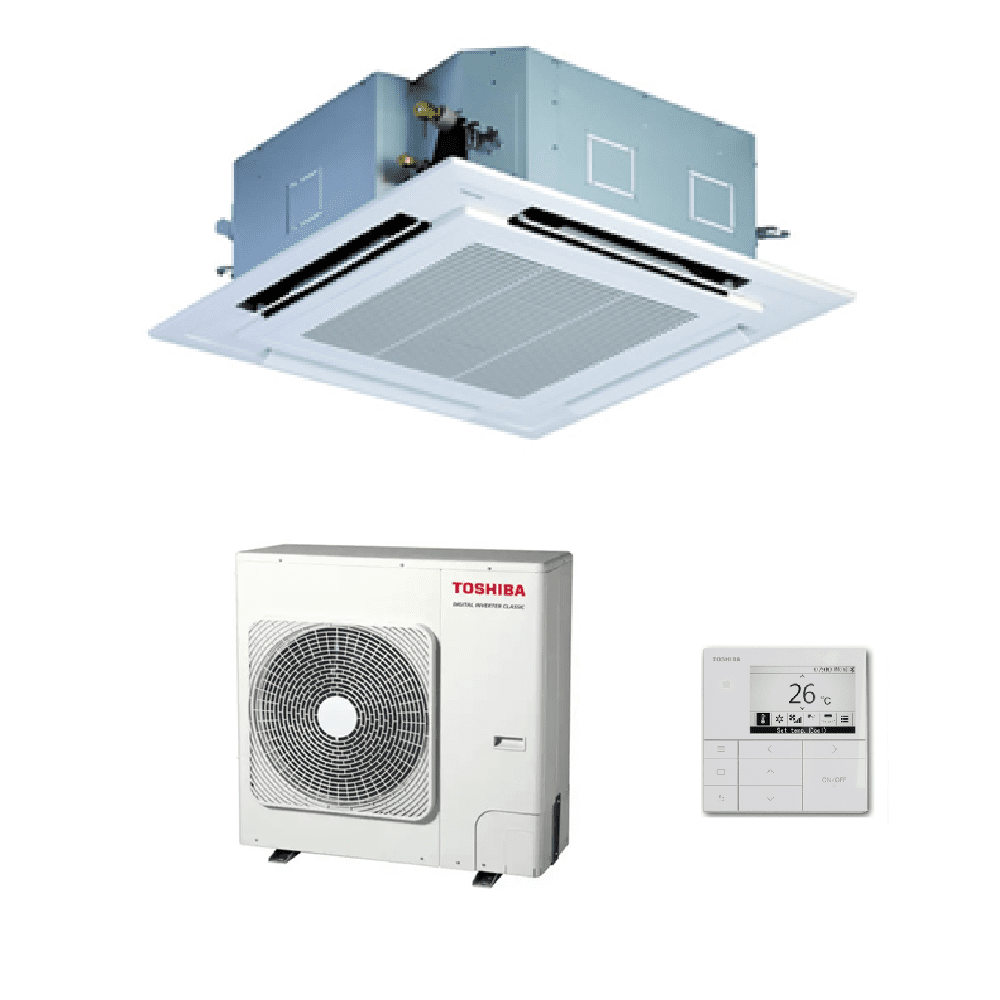

Toshiba Air Conditioning RAV-HM1401UTP-E + RAV-GV1401AT8P-E 4-Way Cassette Heat Pump 12Kw 3Ph
Toshiba Air Conditioning RAV-HM1401UTP-E + RAV-GV1401AT8P-E 4-Way Cassette Heat Pump 12Kw 3Ph is listed for TieDex store sale under Toshiba Air Conditioning RAV Cassette Digital Heat Pump Inverter. The brand/vendor is Toshiba Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview
This Kit Includes: 1 x Toshiba RAV-HM1401UTP-E Digital Inverter 4-Way Cassette Indoor Unit 1 x Toshiba RAV-GV1401AT8P-E Digital Inverter Outdoor Heat Pump Unit 380–415V~50Hz 3Ph 1 x Toshiba RBC-U33P-E Fascia Panel 1 x Toshiba RBC-AMSU52-E Hard-Wired Controller The Toshiba RAV-HM1401UTP-E Digital Inverter 4-Way Cassette is a high-capacity commercial climate solution engineered for large-scale environments such as open-plan offices, retail units, restaurants, meeting halls and hospitality spaces. Designed to deliver powerful and uniform 360° air distribution, this cassette model provides stable cooling and heating performance even under high occupancy or high-load conditions. Built around Toshiba’s advanced Digital Inverter compressor platform, the system offers high seasonal efficiency, rapid temperature stabilisation and reliable operation in demanding commercial settings. The slim cassette chassis integrates a high-efficiency heat exchanger, aerodynamic louvres and multi-directional discharge to ensure balanced comfort throughout every corner of the space. Indoor
airflow reaches an impressive 583 l/s at high fan speed, allowing the HM1401UTP-E to comfortably condition large rooms while maintaining controlled sound levels of just 44 dB(A) on high and 34 dB(A) on low. The paired RAV-GV1401AT8P-E 3-phase outdoor inverter heat pump provides 11.5 kW of cooling and 11.9 kW of heating capacity, with wide operating conditions suitable for year-round commercial performance. With long pipe-run capability up to 30 metres, high airflow output, 4-way discharge design and full compatibility with Toshiba hard-wired controls, this cassette system is ideally suited to medium and large commercial applications that require efficient, quiet and dependable climate control. Key Product Features: • 11.5 kW cooling / 11.9 kW heating output • High seasonal efficiency: A+ cooling / A heating • 4-way discharge cassette for uniform temperature distribution • Quiet indoor operation: 44 / 38 /
34 dB(A) • High-capacity airflow up to 583 l/s • Self-cleaning coil function helps reduce maintenance • Slim cassette chassis for commercial ceiling grid installation • Compatible with wired and building control systems • Robust Digital Inverter outdoor unit for stable performance • Long pipe length capability up to 30 m • Hard-wired controller included as standard • Ideal for restaurants, retail units, offices, reception areas and high-demand commercial spaces Technical Specifications: Cooling / Heating: 11.5 kW / 11.9 kW UK Total/Sensible Cooling: 11.00 / 9.30 kW UK Heating: 6.55 kW Energy Label: A+ Cooling / A Heating Indoor Dimensions (H×W×D): 319 × 840 × 840 mm Outdoor Dimensions (H×W×D): 710 × 900 × 320 mm Indoor Airflow (H–M–L): 583 – 400 – 342 l/s Outdoor Airflow (High): 4200 m³/h (≈1167 l/s) Sound Pressure (ID): 44 – 38 – 34
dB(A) Sound Pressure (OD): 50 / 60 dB(A) Power Supply: 380–415V / 3Ph / 50Hz Interconnecting Cable: (3C+E) Pipe Connections (liquid/gas): 5/8″ – 3/8″ Max Pipe Length: 30 m Max Height Difference: 30 m Charge-Free Length: 20 m Refrigerant Additional Charge: R32 / 1.9 kg total Options: Model Description Price RBC-AX31U(W)-E Wireless Receiver Kit for 4-Way Cassette £191 RBC-AX33UYP-E Wireless Receiver Kit for 1-Way Cassette £57 RBC-AX31U-E Wireless Remote Controller Kit – Ceiling £211 RBC-AX31UMP-E Wireless Remote Controller Kit – Others (Exclude High Static Ducted) £317 RBC-AX31U1-E Wireless Receiver Kit for 4-Way Cassette £225 RBC-AX31UME-E Wireless Receiver Kit for Compact Cassette £141 RBC-AX31U4WE-E Wireless Remote Controller Kit for 2-Way Cassette £142 RBC-AX31U3MP-E Wireless Remote Controller Kit for Compact 4-Way White £185 RBC-AX31U3MPB-E Wireless Remote Controller Kit for Compact 4-Way Black £185 RBC-AX33U4PE-E Wireless Receiver Kit for 4-Way Cassette (MMU-UP, 1HP-E
& RAV-HM, 1UP-E) £185 RBC-AX41U-E Wireless Receiver Kit for 4-Way Cassette £225 RBC-AXU33UPB-E Wireless Remote Controller Kit (IR receiver + handset), Black £173 Model Description Price RBC-AS41E Simplified Remote Controller £106 RBC-ASCU11-E Compact Remote Controller £76 RBC-ASCU32YP-E Compact Remote Controller £81 RBC-AMT32E Standard Remote Controller £126 RBC-AMT32E2 Standard Remote Controller £126 RBC-AMT54E Standard Remote Controller C/W 24/7 Schedule Timer £173 RBC-AMT52E Premium Remote Controller C/W 24/7 Schedule Timer £173 RBC-AMT52U-E Premium Remote Controller C/W 24/7 Schedule Timer + Bluetooth £157 RBC-MTSC1 Mini Touch Screen Controller £272 RBC-MTSC2 Mini Touch Screen Controller C/W Schedule Timer £272 These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence
from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
Key Details
- Brand / Vendor: Toshiba Air Conditioning
- Product SKU: RAV-HM1401UTP-E + RAV-GV1401AT8P
- MPN / Model: RAV-HM1401UTP-E + RAV-GV1401AT8P
- Category: Toshiba Air Conditioning RAV Cassette Digital Heat Pump Inverter
- Parent Category: Toshiba Air Conditioning
- Condition: New
- Availability: InStock
