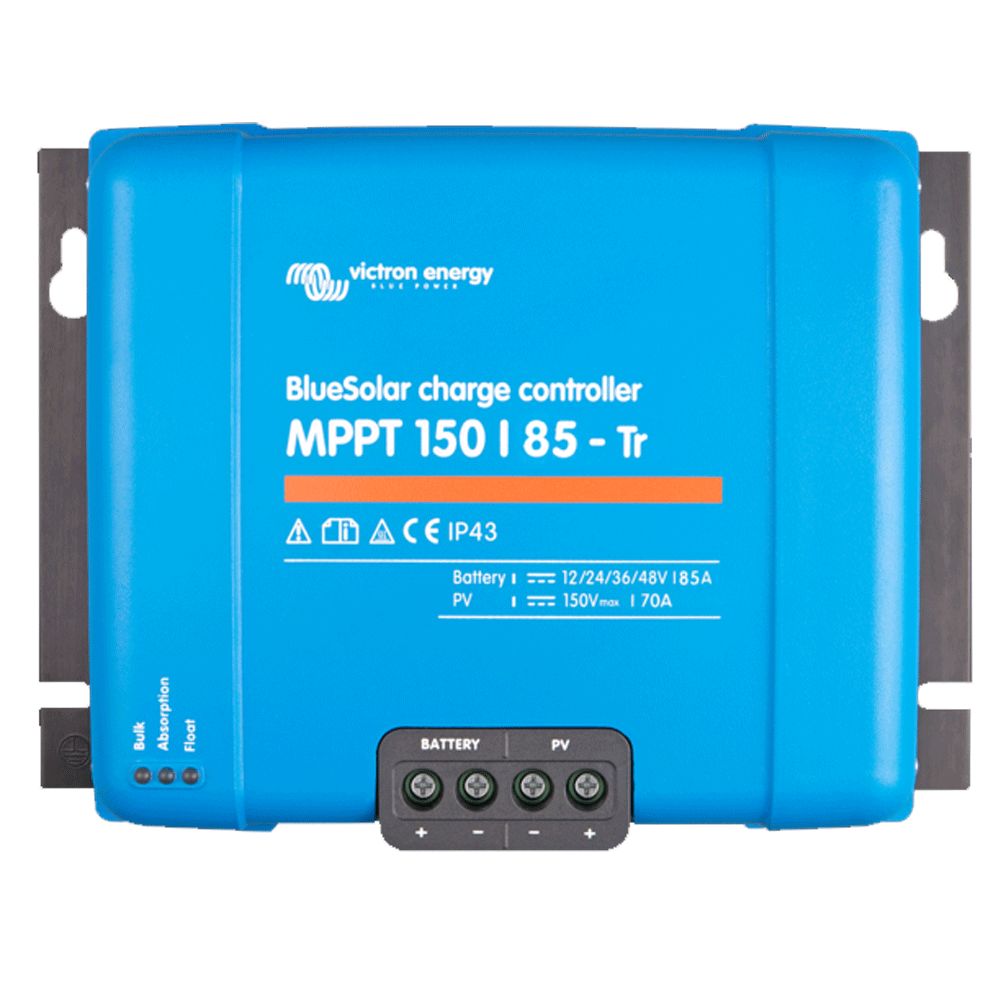

Victron Energy "BlueSolar" MPPT 150/85-Tr MPPT Charge Controller 12/24/36/48V-85A
Victron Energy "BlueSolar" MPPT 150/85-Tr MPPT Charge Controller 12/24/36/48V-85A is listed for TieDex store sale under MPPT Solar Charge Controllers. The brand/vendor is Victron. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview
Ultra-fast Maximum Power Point Tracking (MPPT) Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers. Advanced Maximum Power Point Detection in case of partial shading conditions If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP. Outstanding conversion efficiency No cooling fan. Maximum efficiency exceeds 98%. Flexible charge algorithm Fully programmable charge algorithm, and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details). Extensive electronic protection Over-temperature protection
and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection. Internal temperature sensor Compensates absorption and float charge voltage for temperature. Real-time data display options - Apple and Android smartphones, tablets and other devices: see the VE.Direct to Bluetooth Smart dongle - ColorControl panel Key Features • Bluetooth enabled (Bluetooth dongle needed) • Ultra-fast Maximum Power Point Tracking (MPPT) • Advanced Maximum Power Point Detection in case of partial shading conditions • VE.Direct communication port • Available with screw terminals or MC4 (solar) terminals Technical Specifications Battery Voltage 12/24/36/48 Country of Manufacture India Dimensions (mm) 216 x 295 x 103 SKU SCC010085300 Weight (kgs) 8
Key Details
- Brand / Vendor: Victron
- Product SKU: MPPT150/85-Tr
- MPN / Model: MPPT150/85-Tr
- Category: MPPT Solar Charge Controllers
- Parent Category: Solar Inverters
- Condition: New
- Availability: OutOfStock
