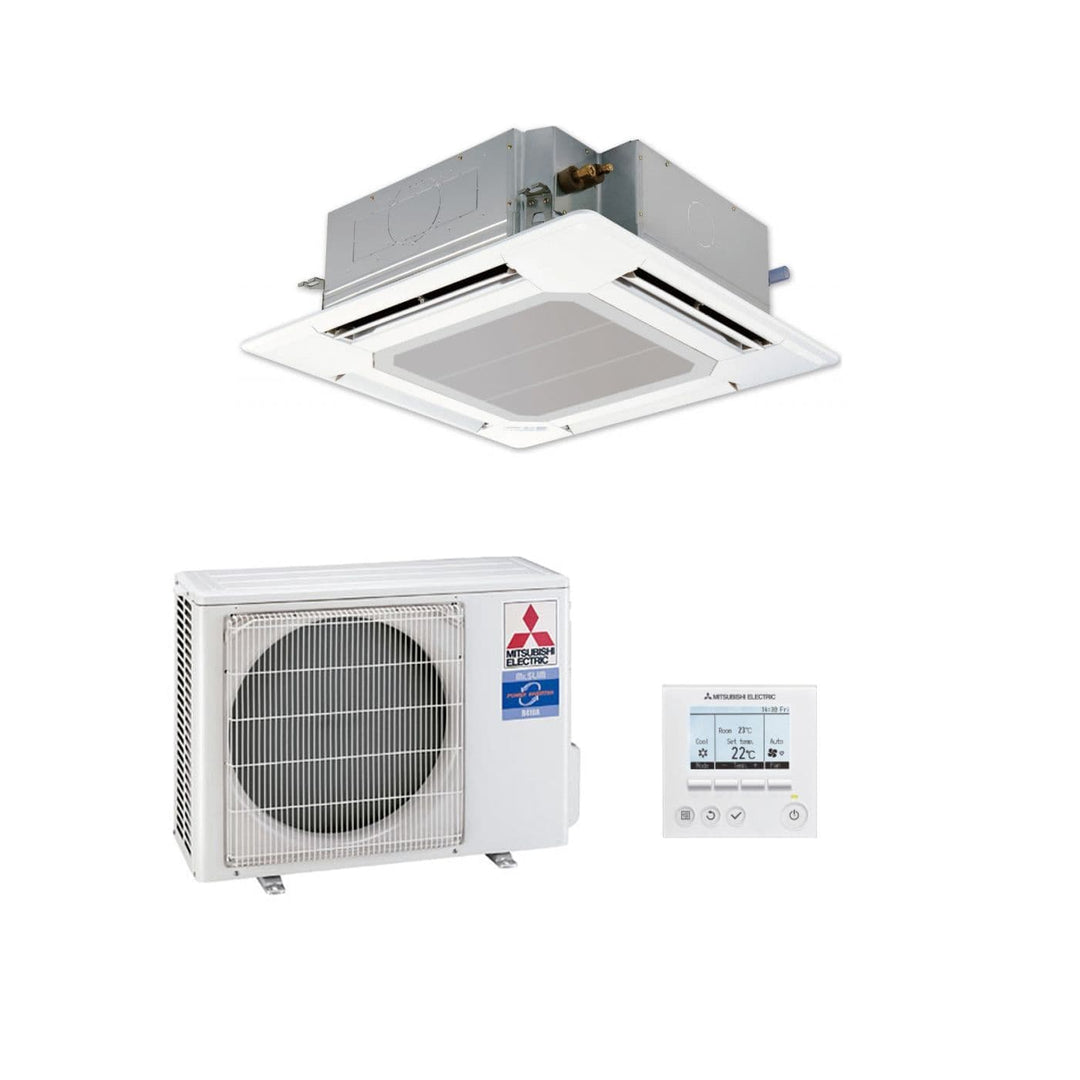

Mitsubishi Electric Air Conditioning Cassette PLA-ZRP50BA Power Inverter Heat Pump 5Kw/17000Btu A++ 240V~50Hz
Mitsubishi Electric Air Conditioning Cassette PLA-ZRP50BA Power Inverter Heat Pump 5Kw/17000Btu A++ 240V~50Hz is listed for TieDex store sale under Mitsubishi Electric Air Conditioning Mr Slim PLA Cassette Inverter Heat Pump A+, A++. The brand/vendor is Mitsubishi Electric Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview
Cassette Heat Pumps for Commercial And Residential Applications. Ideal for large open plan areas, or irregular shaped rooms. The renowned Mitsubishi Electric air conditioning Mr Slim power inverter Cassette range has now been extended to include new small capacity system starting at 2.5kW / 9000Btu, and a high capacity system 14kW at the top end. (figures stated are for cooling/heating performance). The advanced 7-Day Programmable Timer is now included as standard controls specification and 24Hr control. Mitsubishi Electric air conditioning and heat pump high performance power inverter cassette series split systems designed for residential and commercial application such as offices, shops, meeting rooms, restaurants, hotels, clubs, gyms, and open plan areas. The units have a extended pipe run capability of up to 30 meters making them ideal for high-rise buildings. The Mitsubishi Electric air conditioning Mr Slim power inverter air
conditioning system's CoP (Coefficient of Performance) is up to 3.7 on some models. This means the system can deliver 3.7 kW of heating, whilst consuming only 1.0kW of electrical power. This has been achieved by combining advanced Mitsubishi Electric air conditioning inverter technology with R410A refrigerant. The c assette design has improved air flow-pattern through the unit, and the new design of the high performance indoor heat exchanger, have resulted in a pressure loss reduction, allowing the fan design to be optimised for significantly lower sound Db levels. The air discharge louver has been modified to minimise air smudging on the ceiling adjacent to the air outlets. Quiet Operation The indoor unit has a quiet operational noise of 28dB in quiet mode to offer you peace and quiet for the bedroom or office. In addition, the outdoor units have drastically
reduced vibration and noise thanks to a super quiet fan and motor and an innovative anti noise mechanism. Heating / cooling and dehumidification This unit heats, cools and dehumidifies. Healthy De humidification Dehumidification mode reduces uncomfortable humidity from the room without over cooling. Auto Changeover The air conditioner will switch automatically from cooling to heating modes depending on the set temperature. Optimized Cooling & Heating Air Flow The air vanes will be adjusted according to the mode of operation. In heating mode air will be distributed at a lower angle due to hot air rising. Swirl Swing Swirl swing distributes air evenly throughout the room to ensure a more comfortable conditioned environment by adjusting the movement of the louvers. Space Control: The vane angle can be set in two positions to give optimum indoor comfort. It can be controlled by
wired remote control to eliminate direct drafts which can lead to discomfort and reduced productivity. Product Key Feature's • Anti Corrosion Fin (Outdoor) • Weekly Program • High Head Drain Pump • Auto Changeover • Low Standby Power • Auto Restart • Central Controller • Easy-to-Clean Air Filter • Two Thermistor Control • Optimal Air Distribution with side knock outs • Quiet Operation • Healthy Dehumidification • Hot Start • 24-Hour ON/OFF Setting Timer • Optimal air distribution with 4-way directional Air flow system. • 4-way Auto Swing Technical Information PLA-ZRP50BA Indoor Unit Capacity (kW): Heating (Nominal) (Low - High) 6.00 (2.50 - 7.30) Cooling (Nominal) (Low - High) 5.00 (2.30 - 5.60) Heating (UK) (Low - High) 5.10 (2.15 - 6.20) Cooling (UK) (Low - High) 4.50 (2.05 - 5.05) SHF R410A (Nominal) 0.86 COP / EER (Nominal) 3.41
/ 3.23 Energy Label Heating / Cooling A++ / A++ Width (grille) - mm 840 (950) Depth (grille) - mm 840 (950) Height (grille) - mm 258 (30) Weight (grille) - kg 24 (5) Airflow (m3/min) - Lo-Mi1-Mi2-Hi 14-15-16-18 Noise (dBA) - Lo-Mi1-Mi2-Hi 28-29-31-33 Pipe Size Gas mm (in) 12.7 (1/2) Pipe Size Liquid mm (in) 6.35 (1/4) Electrical Supply Fed by Outdoor Unit Phase Single Fuse Rating (BS88) - HRC (A) 6 Interconnecting Cable No. Cores 4 Grille Ref PLP-6AA Remote Controller Ref PAR-21MAA PUHZ-ZRP50VKA Outdoor Unit: Width - mm 800 Depth - mm 300 Height - mm 630 Weight - kg 45 Noise (dBA) (Heating / Cooling) 46 / 44 Electrical Supply 220-240v, 50Hz Phase Single Fuse Rating (BS88) - HRC (A) 16 System Power Input (kW) - Heating (Nominal) 1.76 System Power Input (kW) - Cooling (Nominal)
1.60 System Power Input (kW) - Heating (UK) 1.78 System Power Input (kW) - Cooling (UK) 1.42 Starting Current (A) 6.75 System Running Current (A) - Heating / Cooling 7.14 / 7.74 Mains Cable No. Cores 3 Max Pipe Length (m) 30 Max Height Difference (m) 15 Charge (kg) - 15 1.6 PDF Data: These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
Key Details
- Brand / Vendor: Mitsubishi Electric Air Conditioning
- Product SKU: PLA-ZRP50BA
- MPN / Model: PLA-ZRP50BA
- Category: Mitsubishi Electric Air Conditioning Mr Slim PLA Cassette Inverter Heat Pump A+, A++
- Parent Category: Mitsubishi Electric Air Conditioning
- Condition: New
- Availability: InStock
