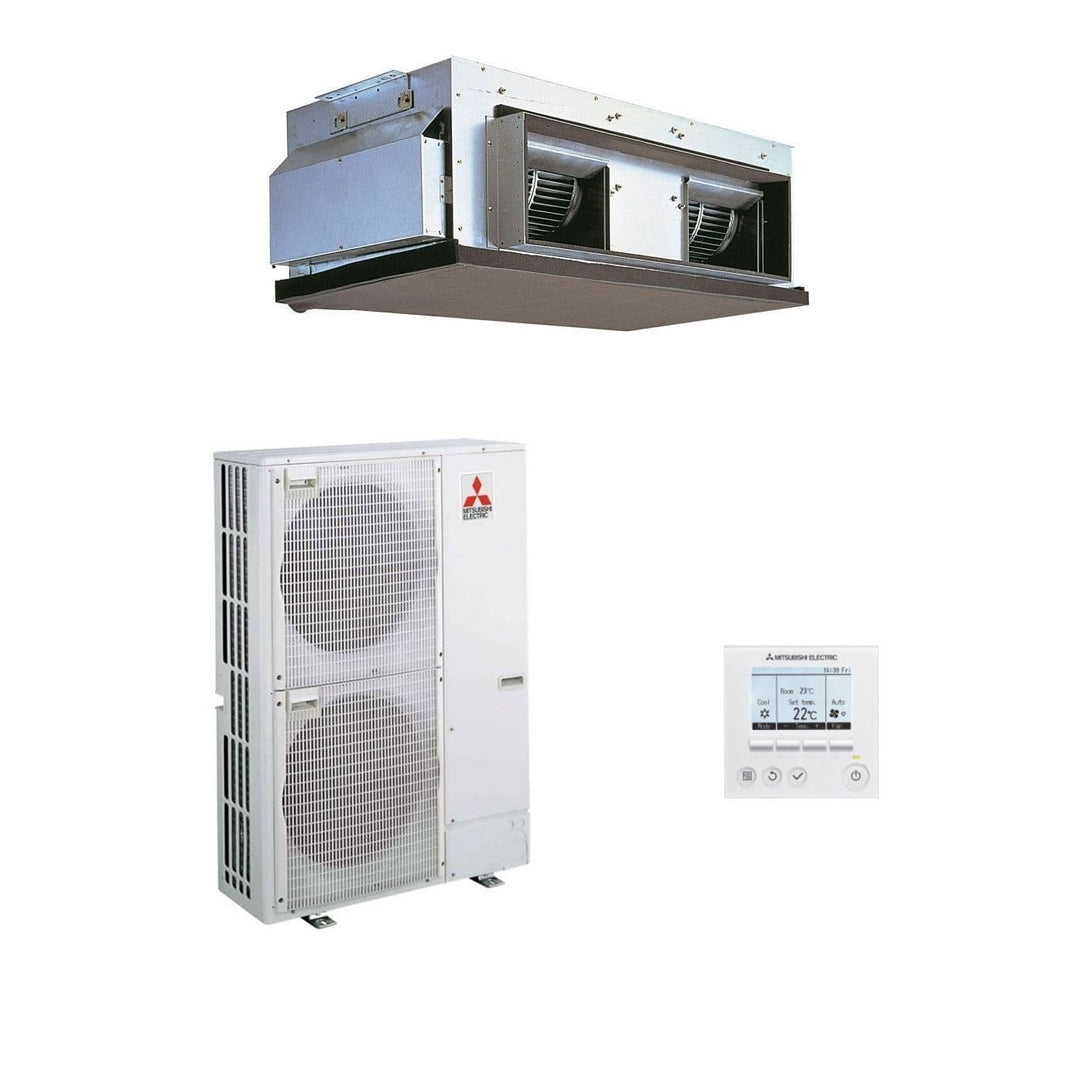

Mitsubishi Electric Air Conditioning PEA-RP200GAQ Ducted Concealed Inverter Heat Pump 20Kw/68000Btu B 415V~50Hz
Mitsubishi Electric Air Conditioning PEA-RP200GAQ Ducted Concealed Inverter Heat Pump 20Kw/68000Btu B 415V~50Hz is listed for TieDex store sale under Mitsubishi Electric Air Conditioning Mr Slim PEAD Concealed Ducted Air Conditioning A+. The brand/vendor is Mitsubishi Electric Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview
D Rated energy product The PEA-RP Standard Inverter range is a ceiling concealed ducted system that blends a host of outstanding features with an unobtrusive design for easy installation and maintenance. Offering advanced control options and quiet operation, this range provides extreme flexibility and ease of installation whilst being cost effective. The Mitsubishi Electric air conditioning range of PEA ducted air conditioning heat pumps are ideal for commercial and industrial applications, ideal for concealed cooling and heating and multiple area applications or irregular shaped areas. The PEA ducted air conditioning units are of robust construction, and are fitted with large diameter fans for optimum air volume, whilst maintaining low sound levels when compared to other units. This range is ideal for medium to large sized commercial buildings such as offices, shops and restaurants. The PEA range has slit-fins and inner
grooved tubing for maximum efficiency in heating and cooling. A 7-Day Programmable Timer included as standard controls specification. The CoP (Coefficient of Performance) is up to 3.04, this means the system can deliver 3.04 kW of heating, whilst consuming only 1.0kW of electrical power. This has been achieved by combining advanced inverter technology and using R410A. The Mitsubishi Electric air conditioning range of PEA concealed ducted heat pump's come complete with condensate pump as standard. Product Key Feature's: • Anti Corrosion Fin (Outdoor) • Weekly Program • High Power Output • Easy-to-Clean Air Filter • Optimal Air Distribution • Auto Cleaning • Auto Changeover • Auto Restart • Bulit in controller • Quiet Operation • Healthy Dehumidification • Hot Start • 24-Hour ON/OFF Setting Timer • Optimal air distribution with directional Air flow system Technical Data: PEA-RP - INDOOR UNITS
PEA-RP250WKA CAPACITY (kW) Heating (nominal) 27.0 (12.5-31.0) Cooling (nominal) 22.0 (11.2-27.0) Heating (UK) 22.95 (10.65-26.35) Cooling (UK) 20.25 (10.3-24.85) SHF (nominal) 0.86 COP / EER (nominal) 3.10 / 2.70 SCOP (ƞsh) / SEER (ƞsc) (BS EN14825) 3.35 (133.9%) / 4.59 (183.7%) AIRFLOW (l/s) Lo-Mi-Hi 967-1183-1400 PIPE SIZE mm (in) Gas 28.58 (1 1/8”) Liquid 12.7 (1/2”) EXTERNAL STATIC PRESSURE (Pa) 60 / 75 / 100 / 150 SOUND PRESSURE LEvEL (dBA) (60Pa) Lo-Mi-Hi 40-43-46 SOUND POWER LEvEL (dBA) (60Pa) Lo-Mi-Hi 70-71-72 DIMENSIONS (mm) Width x Depth x Height 1370 x 1120 x 470 WEIGHT (kg) 108 ELECTRICAL SUPPLY 220-240v, 50Hz PHASE Single POWER INPUT (kW) Nominal / UK 0.80 / 0.71 STARTING CURRENT (A) 7.1 RUNNING CURRENT (A) [MAX] 4.34 [5.5] FUSE RATING (BS88) - HRC (A) 16 MAINS CABLE No. Cores 3 INTERCONNECTING CABLE No. Cores 3 WIRED REMOTE
CONTROLLER REFERENCE PAR-33MAA PDF DATA: These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
Key Details
- Brand / Vendor: Mitsubishi Electric Air Conditioning
- Product SKU: PEA-RP250GAQ
- MPN / Model: PEA-RP250GAQ
- Category: Mitsubishi Electric Air Conditioning Mr Slim PEAD Concealed Ducted Air Conditioning A+
- Parent Category: Mitsubishi Electric Air Conditioning
- Condition: New
- Availability: InStock
