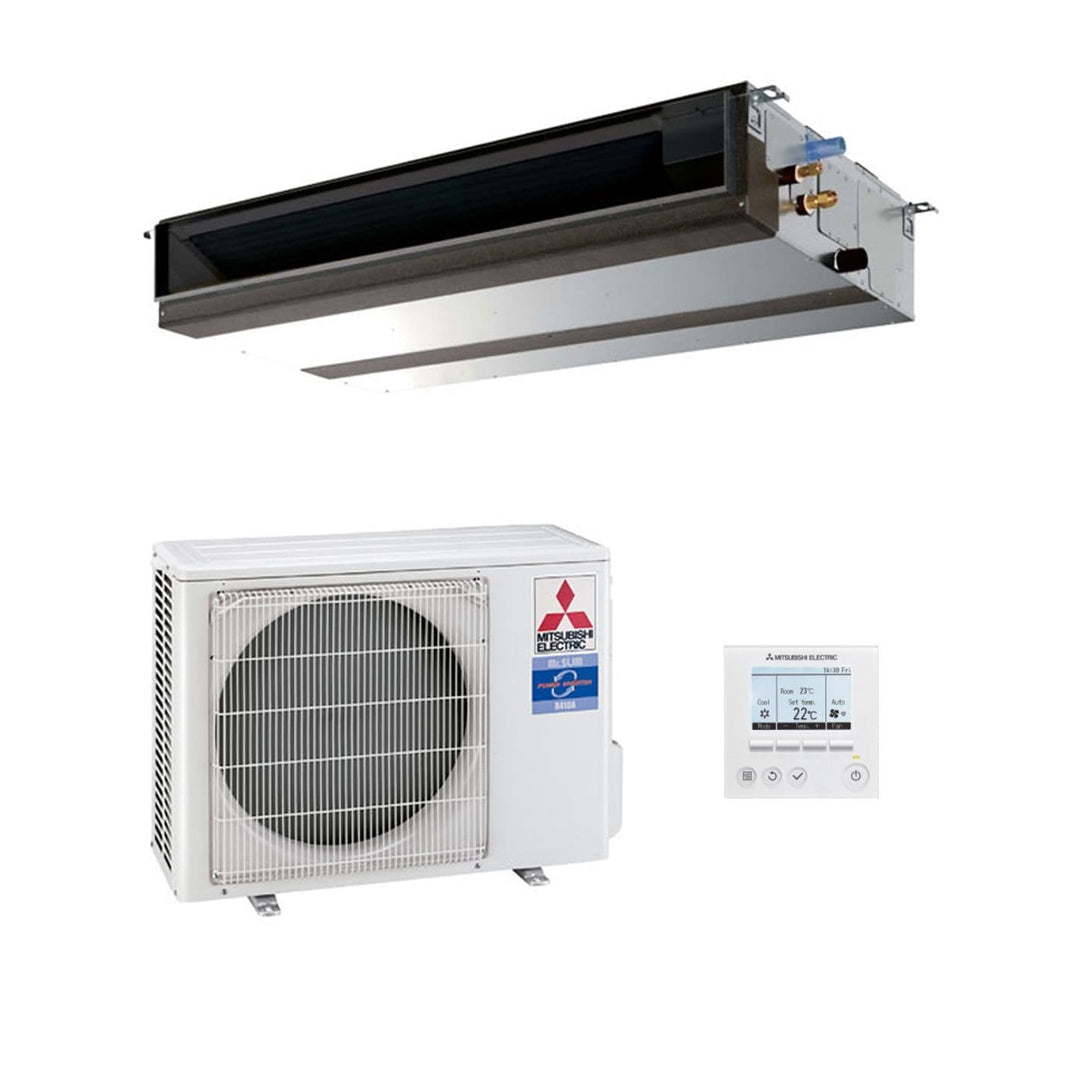

Mitsubishi Electric Air Conditioning PEAD-M35JA Ducted Concealed Inverter Heat Pump 3.5Kw/12000Btu R32 A+ 240V~50Hz
Mitsubishi Electric Air Conditioning PEAD-M35JA Ducted Concealed Inverter Heat Pump 3.5Kw/12000Btu R32 A+ 240V~50Hz is listed for TieDex store sale under Mitsubishi Electric Air Conditioning Mr Slim PEAD Concealed Ducted Air Conditioning A+. The brand/vendor is Mitsubishi Electric Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview
A+ Rated energy product The new Mitsubishi Electric air conditioning range of R32 PEAD power inverter concealed ducted heat pump units start at 3.5kW, and large capacity cooling/heating at the top end of the range of 14.kW. The Mitsubishi Electric air conditioning range of PEAD ducted air conditioning heat pumps are ideal for commercial and residential applications, ideal for concealed cooling and heating and multiple area applications or irregular shaped rooms. The PEAD ducted air conditioning units are of robust construction, and are fitted with large diameter fans for optimum air volume, whilst maintaining low sound levels. This range is ideal for small to medium sized commercial buildings such as offices, shops and restaurants. The PEAD range has slit-fins and inner grooved tubing for maximum efficiency in heating and cooling. A 7-Day Programmable Timer included as standard controls specification. The
sCoP (Coefficient of Performance) is up to 4.1, this means the system can deliver 4.1 kW of heating/cooling, whilst consuming only 1.0kW of electrical power. This has been achieved by combining advanced inverter technology and using the new environmentally friendly R32 refrigerant. The Mitsubishi Electric air conditioning range of PEAD concealed ducted heat pump's come complete with condensate pump as standard. The indoor unit has a quiet operational noise of 23dB in the low mode to offer you peace and quiet for the bedroom or office. In addition, the outdoor units have drastically reduced vibration and noise thanks to a super quiet fan and motor and an innovative anti noise mechanism. Product Key Feature's: • Anti Corrosion Fin (Outdoor) with R32 refrigerant • Weekly Program • High Power Output • Optimal Air Distribution • Auto Cleaning • Auto Changeover •
Auto Restart • Wired PAR-33MAA controller option of wireless control • Quiet Operation • Healthy Dehumidification • Hot Start • 24-Hour ON/OFF Setting Timer • Slim Design Technical Data: PEAD-M - INDOOR UNITS PEAD-M35JA CAPACITY (kW) Heating (nominal) 4.1 (1.6-5.2) Cooling (nominal) 3.6 (1.6-4.5) Heating (UK) 3.5 (1.35-4.4) Cooling (UK) 3.3 (1.45-4.15) SHF (nominal) 0.85 COP / EER (nominal) 4.47 / 4.30 SCOP / SEER (BS EN14825) 3.9 / 5.8 ERP ENERGY EFFICIENCY CLASS Heating/Cooling A / A+ AIRFLOW (l/s) Lo-Mi-Hi 167-200-233 PIPE SIZE MM (in) Gas 12.7 (1/2”) Liquid 6.35 (1/4”) EXTERNAL STATIC PRESSURE (Pa) 35-50-70-100-150 SOUND PRESSURE LEVEL (dBA) Lo-Mi-Hi 23-27-30 SOUND POWER LEVEL (dBA) 54 DIMENSIONS (mm) Width x Depth x Height 900 x 732 x 250 WEIGHT (kg) 26 ELECTRICAL SUPPLY Fed by Outdoor Unit FUSE RATING (BS88) - HRC (A) 6 INTERCONNECTING CABLE NO. CORES
4 WIRED REMOTE CONTROLLER REFERENCE PAR-33MAA PUZ-ZM - OUTDOOR UNITS PUZ-ZM35VKA SOUND PRESSURE LEVEL (dBA) Heating/Cooling 46 / 44 SOUND POWER LEVEL (dBA) Cooling 65 WEIGHT (kg) 46 DIMENSIONS (mm) Width x Depth x Height 809 x 300 x 630 ELECTRICAL SUPPLY 220-240v, 50Hz PHASE Single SYSTEM POWER INPUT (kW) Heating/Cooling (nominal) 0.820 / 0.705 Heating/Cooling (UK) 0.73 / 0.59 STARTING CURRENT (A) 5.0 SYSTEM RUNNING CURRENT (A) Heating/Cooling [MAX] 3.89 / 3.51 [13.2] FUSE RATING (BS88) - HRC (A) 16 MAINS CABLE NO. CORES 3 MAX PIPE LENGTH (m) 50 MAX HEIGHT DIFFERENCE (m) 30 CHARGE REFRIGERANT (kg) / CO2 EQUIVALENT (t) R32 (GWP 675) - 30m 2.0 / 1.35 MAX ADDITIONAL REFRIGERANT (kg) / CO2 EQUIVALENT R32 (GWP 675) 0.30 / 0.20 PDF DATA: These air conditioning units must be installed by an F-Gas qualified engineer. We can
install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
Key Details
- Brand / Vendor: Mitsubishi Electric Air Conditioning
- Product SKU: PEAD-M35JA + PUZ-ZM35VKA
- MPN / Model: PEAD-M35JA + PUZ-ZM35VKA
- Category: Mitsubishi Electric Air Conditioning Mr Slim PEAD Concealed Ducted Air Conditioning A+
- Parent Category: Mitsubishi Electric Air Conditioning
- Condition: New
- Availability: InStock
