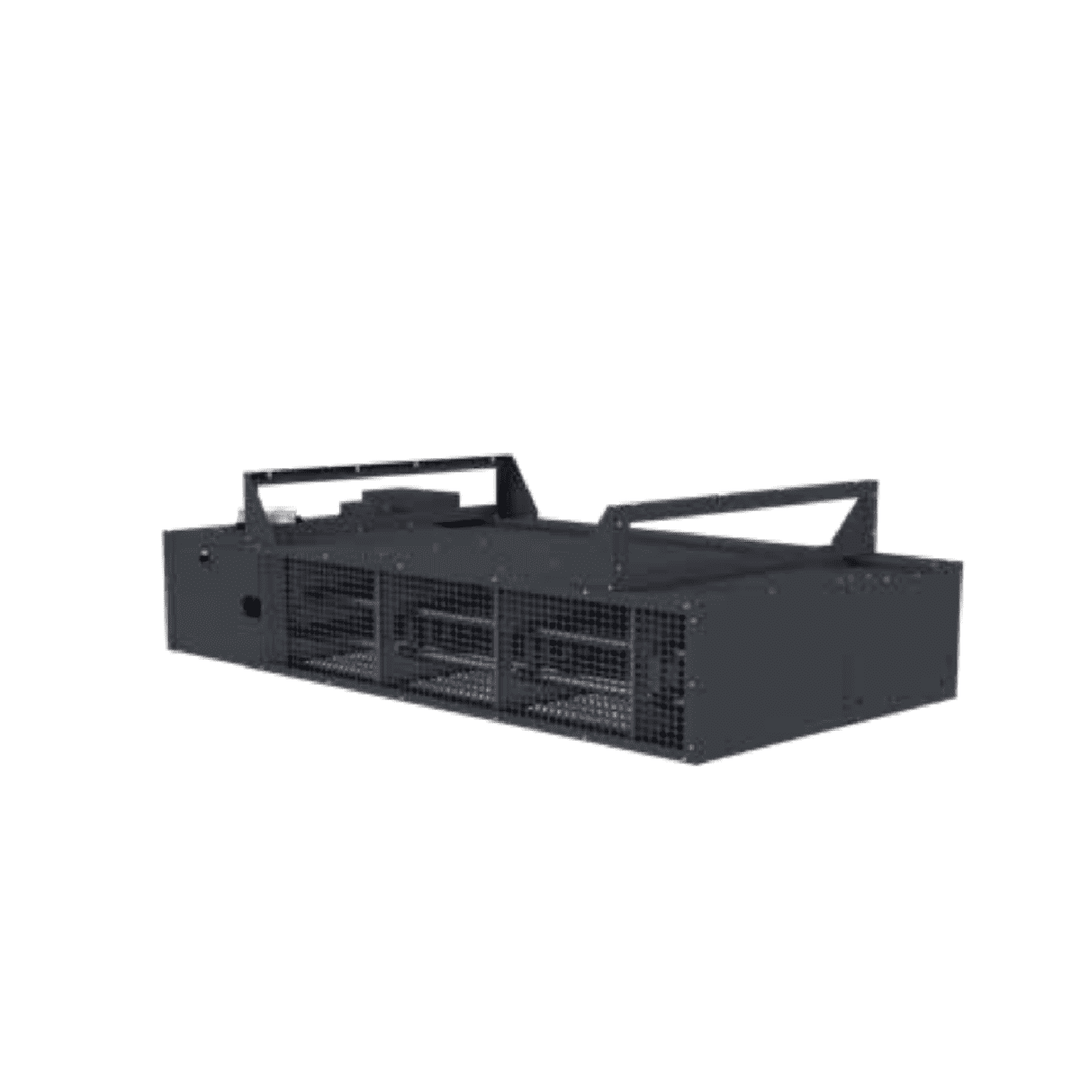

Powrmatic BAR3/GFAC Gas Fired Heated Door Curtain 1750mm 8100m³/h 40Kw/136000 220-240V~50Hz
Powrmatic BAR3/GFAC Gas Fired Heated Door Curtain 1750mm 8100m³/h 40Kw/136000 220-240V~50Hz is listed for TieDex store sale under Standard Electric Air Curtains. The brand/vendor is Powrmatic. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview
This Kit Includes: 1 × Powrmatic BAR3/GFAC Gas Fired Heated Door Curtain 1 × Integrated centrifugal fan assembly (3 fans) 1 × Downward discharge slot with adjustable directional louvres 1 × Factory-fitted gas burner system 1 × Flue connection spigot (100mm) High Output Gas Fired Heated Door Curtain for Industrial Loading Bays The Powrmatic BAR3/GFAC is a high-performance 40kW gas fired heated industrial door curtain engineered to provide active environmental control across large commercial and warehouse door openings. Designed for high-level horizontal installation, the BAR3/GFAC delivers a powerful heated air stream downward across the doorway. This simultaneously prevents cold air ingress and breaks up cold air pooling at floor level, a common issue in high-traffic loading bays and logistics facilities. With a maximum nominal output of 36.5kW and input (net CV) of 40.0kW, the unit provides substantial heating performance while
maintaining controlled airflow via centrifugal fan technology. The average outlet velocity of 15.3 m/s ensures consistent environmental separation even in exposed doorways. The three-speed fan configuration allows airflow adjustment to suit mounting height and operational conditions, with high speed airflow reaching 8,100 m³/h. Key Product Features: • Gas fired heated industrial door curtain • Nominal heat output (high fire): 36.5kW • Nominal heat output (low fire): 24.2kW • Gas input (net CV): 40.0kW (high fire) • Three-speed airflow control • High speed airflow: 8,100 m³/h • Medium speed airflow: 4,500 m³/h • Low speed airflow: 3,000 m³/h • Average outlet velocity: 15.3 m/s • High-level horizontal mounting configuration • Centrifugal fan system (3 internal fans) • Directional discharge louvres fitted • Helps prevent heat loss and cold air pooling • Designed for industrial warehouse environments Technical Specifications: Model: BAR3/GFAC Product
Type: Gas fired heated door curtain Heat Output (Nominal): High Fire (max): 36.5kW Low Fire (min): 24.2kW Gas Input (Net CV): High Fire (max): 40.0kW Low Fire (min): 27.2kW Airflow Volume: High Speed: 8,100 m³/h Medium Speed: 4,500 m³/h Low Speed: 3,000 m³/h Electrical Supply: 230V~50Hz 1Ph Starting Current: 21.0A Running Current: 12.0A Fuel Connection: ¾" BSP Rc Nominal Inlet Pressure: 20.0 mbar Gas Consumption: 4.23 m³/h Recommended Mounting Height (Min): 2.0 m Overall Dimensions: Height: 466 mm Width: 1,750 mm Depth: 1,150 mm Install Clearance: Top: 200 mm Front (air inlet): 1,000 mm Sides: 25 mm Flue Diameter: 100 mm Maximum Flue Length: 7m + 2 × 90° elbows (flue only or room sealed) Combustion Air Spigot: 100 mm Quantity of Fans: 3 Noise Level: 72 dB(A) Net Weight: 80 kg Applications: • Industrial warehouses • Distribution centres •
High traffic loading bays • Manufacturing facilities • Logistics hubs • Large commercial door openings requiring heated air separation Accessories: Model Part Number Applicable Model £ Door Switch BAR/DS All 256 Run on Timer BAR/RT All 325 BMS Link BAR/BMS All 717 Specialist Controls (on request) BAR/*** All POA ¾" Flexible Gas Connection 142401591 GFAC 65 ¾" Gas Isolation Valve 141202621 GFAC 56
Key Details
- Brand / Vendor: Powrmatic
- Product SKU: BAR3/GFAC
- MPN / Model: BAR3/GFAC
- Category: Standard Electric Air Curtains
- Parent Category: Air Curtains
- Condition: New
- Availability: InStock
- TieDex UK
