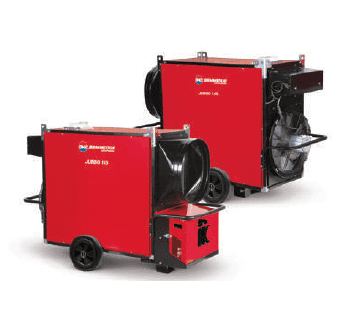

Arcotherm JUMBO 110M Industrial Heater with Ecoflam Burner, Flue Kit, Thermostat 102.51kW 230V~50Hz
Arcotherm JUMBO 110M Industrial Heater with Ecoflam Burner, Flue Kit, Thermostat 102.51kW 230V~50Hz is listed for TieDex store sale under Oil Fired Space Heaters Without Flue. The brand/vendor is Arcotherm. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview
The Arcotherm JUMBO 110M is a highly efficient industrial heater designed for mid-sized commercial, agricultural, and construction environments. This complete package includes everything needed for deployment: a pre-installed Ecoflam diesel burner, Tigerloop de-aerator, 1-way warm air outlet adaptor, stainless steel flue and rain cowl, and a plug-in room thermostat. Built for clean, fume-free air delivery and year-round use in tough conditions. Why Choose the Arcotherm JUMBO 110M Industrial Heater Package? Delivering 102.51kW of usable heat and 9000m³/h airflow at 92.80% thermal efficiency, the JUMBO 110M combines performance, economy, and flexibility. Its rugged build and weather-sealed components (IP55/IP65/IP68) make it ideal for both temporary and permanent heating solutions. Designed for quick setup and easy maintenance, this unit ensures clean warm air heating in well-ventilated or occupied areas. Key Product Features: Supplied as a complete package: Ecoflam diesel burner (pre-installed) Tigerloop fuel
de-aerator 1-way warm air outlet adaptor (Ø500mm) Stainless steel flue kit with rain cowl (Ø150mm) Plug-in room thermostat with cable Rated heat power: 110.46kW Output heat power: 102.51kW Thermal efficiency: 92.80% Clean, dry, fume-free warm air – safe for ventilated or occupied spaces Airflow: 9000m³/h Static pressure: 200–220 Pa Heating throw: up to 47m Diesel consumption: 8.74 kg/h Electrical supply: 230V ~ 50Hz Power consumption: 1100W Compatible with ducting and thermostat systems Rear Electrical Panel (IP65): 4-position control: Stop / Ventilation / Heating / Heating with Continuous Ventilation Integrated digital thermoregulator with: Fan and burner settings Air outlet temperature display Hour counter Password-secured access Service Front Electrical Panel: Manual-reset overheat thermostat Pre-heat filter socket Ports for thermostat, humidistat, timer Status indicators: burner, overheat, power Durability and Weather Protection: IP55 ventilator IP65 control panel IP68 electrical connectors Cross-pleated reinforced panel design
Removable side and internal panels for cleaning Captive metric screw fixings throughout Supplied with 350mm suspension chain Operating temperature: -30°C to +60°C Dimensions & Weight (Machine Only): Length: 1765mm Width: 800mm Height: 1214mm Net Weight: 200kg Packaging Dimensions: Length: 1775mm Width: 710mm Height: 1240mm Gross Weight: 220kg Disclaimer: Supplied accessories are provided loose for site assembly. Fuel tank not included.
Key Details
- Brand / Vendor: Arcotherm
- Product SKU: Jumbo 110M-19162
- MPN / Model: Jumbo 110M
- Category: Oil Fired Space Heaters Without Flue
- Parent Category: Oil Fired Space Heater
- Condition: New
- Availability: InStock
