Arcotherm JUMBO 185T Industrial Heater Without Burner 185kW 14,500m³/h Three Phase 230V~50Hz
Arcotherm JUMBO 185T Industrial Heater Without Burner 185kW 14,500m³/h Three Phase 230V~50Hz is listed for TieDex store sale under Oil Fired Space Heaters Without Flue. The brand/vendor is Arcotherm. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview

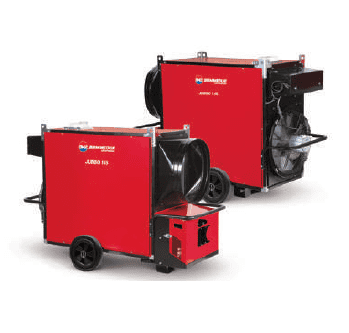

The Arcotherm JUMBO 185T is a high-capacity industrial heater engineered for large-scale heating requirements in commercial, agricultural, and construction settings. Supplied without a burner, this unit is designed to be paired with compatible diesel, LPG, or natural gas burners. Operating on a 230V three-phase electrical supply, the JUMBO 185T is ideal for environments where consistent performance and energy-efficient air delivery are essential. Why Choose the Arcotherm JUMBO 185T Industrial Heater? Delivering up to 172.52kW of usable heat at 92.79% thermal efficiency, the JUMBO 185T offers clean, powerful, and cost-effective heating. It moves air at 14,500m³/h using a robust axial fan system and is built to endure harsh working conditions. The weather-resistant housing and IP-rated electrical systems ensure long-term reliability, while removable access panels simplify maintenance. Key Product Features: Supplied without burner – diesel, LPG, or natural gas compatible Rated heat
power: 185.93kW Output heat power: 172.52kW Thermal efficiency: 92.79% High airflow output: 14,500m³/h Static pressure: 200–220 Pa Heating range: up to 52m Fuel usage (with burner): Diesel: 14.71 kg/h Natural Gas (G20): 17.552 m³/h LPG (G31): 7.046–13.57 m³/h Electrical supply: 230V ~ 50Hz Electrical consumption: 1,780W Flue diameter: 250mm Compatible with 1-way, 2-way, and 4-way duct outlet kits Rear Electrical Panel (IP65): 4-position selector switch: Stop / Ventilation / Heating / Heating + Continuous Ventilation Digital thermoregulator with: Burner and fan control Hour counter Air outlet temperature reading Password-protected setting access Service Front Electrical Panel: Manual-reset safety overheat thermostat Pre-heating filter socket Ports for thermostat, humidistat, and timer LED indicators for power, burner status, and overheat Construction & Durability: IP55 axial fan protection IP65 rear control panel IP68 fast-connect electrical couplings Reinforced steel housing with cross-pleated paneling Removable side and
internal panels Fully metric fixings throughout Supplied with 350mm suspension chain Operating temperature range: -30°C to +60°C Dimensions & Weight (Machine Only): Length: 2094mm Width: 1000mm Height: 1450mm Net Weight: 348kg Packaging Dimensions: Length: 2050mm Width: 940mm Height: 1415mm Gross Weight: 368kg Disclaimer: Burner not included. Images for illustration only.
Key Details
- Brand / Vendor: Arcotherm
- Product SKU: Jumbo 185M 230V Three Phase
- MPN / Model: Jumbo 185M 230V Three Phase
- Category: Oil Fired Space Heaters Without Flue
- Parent Category: Oil Fired Space Heater
- Condition: New
- Availability: InStock
- TieDex UK
