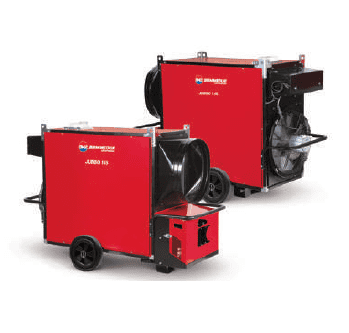

Arcotherm JUMBO 235M Industrial Heater Without Burner 235kW High Capacity 230V~50Hz
Arcotherm JUMBO 235M Industrial Heater Without Burner 235kW High Capacity 230V~50Hz is listed for TieDex store sale under Oil Fired Space Heaters Without Flue. The brand/vendor is Arcotherm. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview
The Arcotherm JUMBO 235M is a powerful industrial heater engineered for large-scale heating requirements in commercial, agricultural, and construction environments. Supplied without a burner, this model offers compatibility with diesel, LPG, or natural gas systems and operates on a 230V single-phase power supply—perfect for large spaces where a reliable, high-output heater body is required but burner flexibility is essential. Why Choose the Arcotherm JUMBO 235M Industrial Heater? Delivering up to 218.42kW of usable heat and airflow of 16,000m³/h, the JUMBO 235M is ideal for heating large enclosed or semi-enclosed spaces such as warehouses, livestock buildings, factories, and events. With 92.63% thermal efficiency, the unit provides excellent fuel economy when combined with a compatible burner. IP-rated electrical panels, a high-performance axial fan, and removable access panels make this heater as durable as it is service-friendly. Key Product Features: Supplied without burner
– compatible with diesel, LPG, or natural gas burners Rated heat power: 235.86kW Output heat power: 218.42kW Thermal efficiency: 92.63% Airflow capacity: 16,000m³/h Static pressure: 200–220 Pa Heating throw: Up to 53m Fuel consumption (with burner): Diesel: 18.66 kg/h Natural Gas (G20): 22.247 m³/h LPG (G31): 8.925–17.19 m³/h Electrical supply: 230V ~ 50Hz Electrical consumption: 2,300W Flue outlet diameter: 250mm Compatible with 1-way, 2-way, and 4-way duct outlet systems Rear Electrical Panel (IP65): 4-position rotary switch: Stop / Ventilation / Heating / Heating + Continuous Ventilation Digital thermoregulator includes: Burner and fan control Runtime display Air outlet temperature reading Password-protected access settings Service Front Electrical Panel: Overheat safety thermostat with manual reset Sockets for pre-heat filter, thermostat, humidistat, timer LED indicators: burner status, power on, overheat warning Construction & Environmental Protection: IP55 ventilator protection IP65 sealed rear control panel IP68
quick-connect couplings for electrical components Reinforced, cross-pleated steel panel casing Removable side and internal access panels Metric screws and captive fixings Supplied with 350mm hanging chain Operating ambient temperature: -30°C to +60°C Dimensions & Weight (Machine Only): Length: 2245mm Width: 982mm Height: 1584mm Net Weight: 357kg Packaging Dimensions: Length:2200mm Width:880mm Height: 1560mm Gross Weight: 377kg Disclaimer: Product images are for illustration.
Key Details
- Brand / Vendor: Arcotherm
- Product SKU: Jumbo 235M without burner 230V Single Phase
- MPN / Model: Jumbo 235M without burner 230V Single Phase
- Category: Oil Fired Space Heaters Without Flue
- Parent Category: Oil Fired Space Heater
- Condition: New
- Availability: InStock
