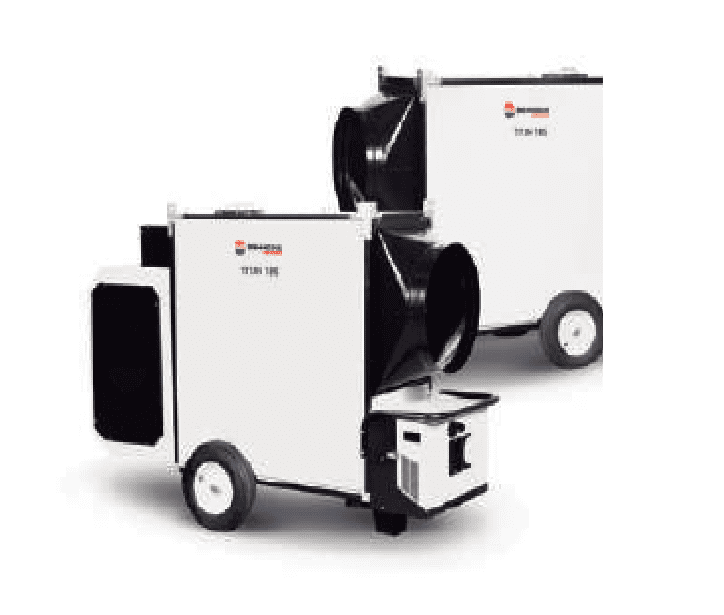

Arcotherm TITAN 145M Industrial Heater Without Burner 145kW High Pressure Centrifugal Fan 230V~50Hz
Arcotherm TITAN 145M Industrial Heater Without Burner 145kW High Pressure Centrifugal Fan 230V~50Hz is listed for TieDex store sale under Oil Fired Space Heaters Without Flue. The brand/vendor is Arcotherm. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview
The Arcotherm TITAN 145M is a robust industrial heater body equipped with a centrifugal fan designed for long duct runs and high static pressure performance. Supplied without a burner, this model is ideal for pairing with compatible diesel, LPG, or natural gas burners in demanding environments such as construction sites, agriculture, logistics hubs, and events. Operating on 230V~50Hz single phase, the TITAN 145M is a dependable heating solution where high air volume and static pressure are essential. Why Choose the Arcotherm TITAN 145M Industrial Heater? The TITAN 145M delivers up to 145kW of usable heat with airflow reaching 14,000m³/h. Its high-performance centrifugal fan achieves 300–310 Pa static pressure, making it suitable for extended ductwork and large-scale air distribution. With 96% thermal efficiency and advanced electrical panel controls, this heater provides powerful, targeted, and cost-efficient heat output in tough conditions. Key
Product Features: Supplied without burner – compatible with diesel, LPG or natural gas Rated heat power: 144.72kW Output heat power: 138.95kW Thermal efficiency: 96% Airflow: 14,000m³/h Static pressure: 300–310 Pa Effective heat range: up to 56m Compatible fuel consumption (with burner): Diesel: 11.45 kg/h Natural Gas (G20): 13.855 m³/h LPG (G31): 5.403–10.57 m³/h Electrical supply: 230V~50Hz Electrical consumption: 3,100W Flue diameter: 200mm Optional ducting: 1-way outlet: 600mm 2-way outlet: 500mm 4-way outlet: 350mm Rear Electrical Panel (IP65): 4-position selector: Stop / Ventilation / Heating / Heating + Continuous Ventilation Thermoregulator with: Burner and fan control Outlet air temperature display Runtime monitoring Password-protected settings Front Electrical Panel (IP65): Manual reset overheat thermostat Pre-heat filter socket Sockets for thermostat, humidistat, or timer LED status indicators for burner, overheat, and power Construction & Durability: 96% high-efficiency heat exchanger IP55 centrifugal fan motor IP65
sealed electrical panels IP68-rated quick electrical connectors Reinforced casing with cross-pleated panel design Removable interior panels for washing Air re-uptake snorkel with shutter Operating range: -30°C to +60°C Hanging chain attachment included Unit Dimensions (L x W x H): 1905mm x 980mm x 1344mm Net Weight : 254kg Disclaimer: Images are for illustrative purposes only. Burner and accessories not included.
Key Details
- Brand / Vendor: Arcotherm
- Product SKU: Titan 145M
- MPN / Model: Titan 145M
- Category: Oil Fired Space Heaters Without Flue
- Parent Category: Oil Fired Space Heater
- Condition: New
- Availability: InStock
