Daikin Air Conditioning Daikin EBLA11D3V3 Altherma 3 Monobloc Air to Water Heating and Cooling 11Kw/36000Btu A+++ 240V 1Ph
Daikin Air Conditioning Daikin EBLA11D3V3 Altherma 3 Monobloc Air to Water Heating and Cooling 11Kw/36000Btu A+++ 240V 1Ph is listed for TieDex store sale under Daikin Air Conditioning Altherma Air Source Heat Pump. The brand/vendor is Daikin Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview

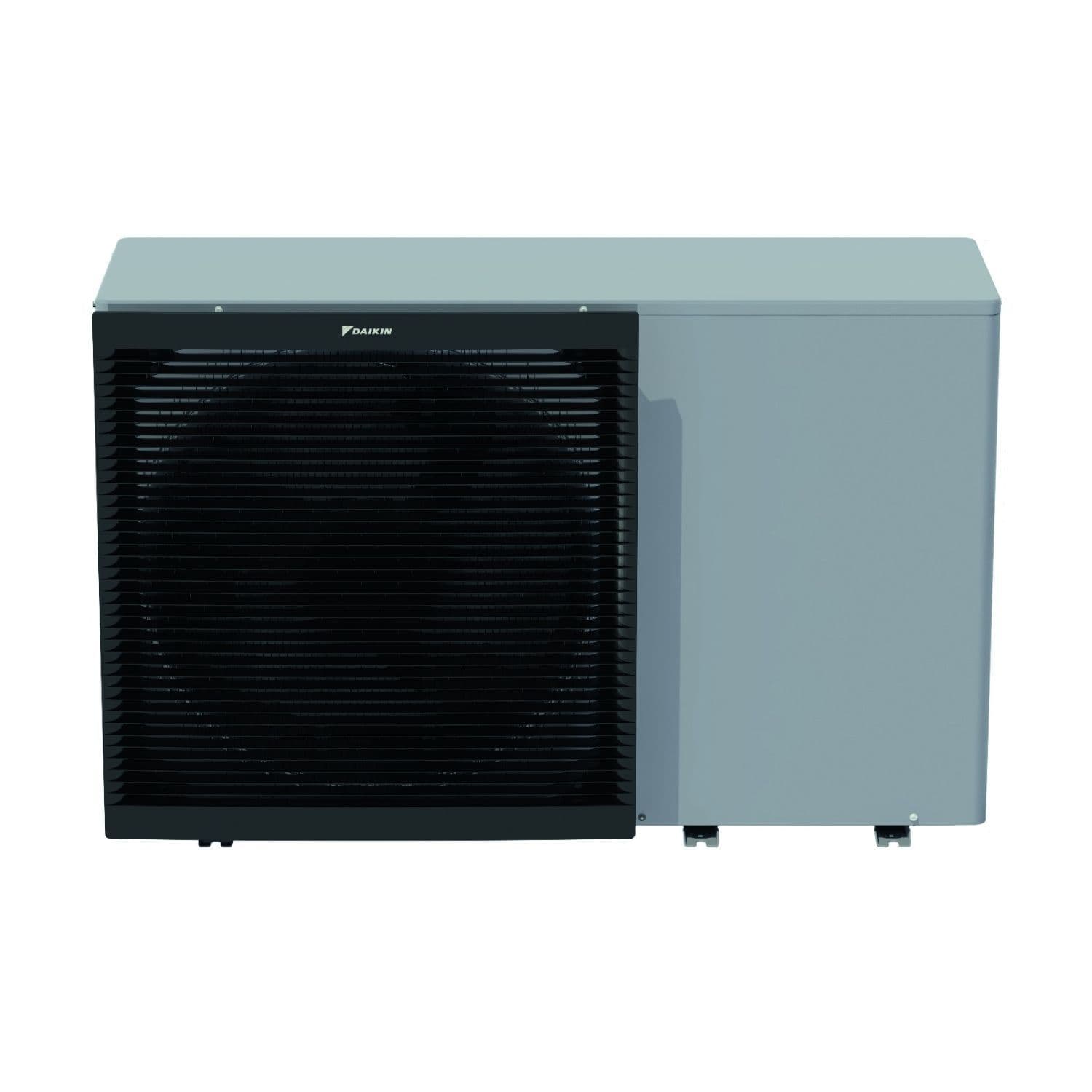

This Kit Includes: 1 X Daikin EBLA11D3V3 Altherma 3 Monobloc Air to Water Heating and Cooling 11Kw/36000Btu A+++ 220-240V 1Ph 1 x BRC1HHDK - User interface controller The Daikin EBLA11D3V3 Altherma 3 Monobloc is a highly efficient air-to-water heating and cooling system, delivering 11Kw/36000Btu with an A+++ energy rating. Designed with a sleek, modern aesthetic, it features a black front grill that conceals the fan, minimizing sound perception. The light grey casing reflects its surroundings, helping the unit blend seamlessly into any decor. This monobloc unit integrates all necessary hydraulic parts, eliminating the need for an indoor unit and making it ideal for installations where indoor space is limited. This third-generation monobloc unit from Daikin utilizes the eco-friendly R-32 refrigerant and features a single, larger fan that replaces the typical double fan used in high-capacity units. The fan's redesigned shape
reduces contact surface with air, enhancing air circulation and lowering sound levels. Capable of operating in temperatures as low as -25°C, the Altherma 3 ensures reliable heating down to -20°C, delivering a leaving water temperature (LWT) of 60°C at -7°C. This makes it suitable for a variety of applications, including renovations, replacements, and large new buildings. The Daikin Altherma 3 Monobloc can be combined with domestic hot water systems, enhancing its versatility. The optional W-LAN cartridge connection allows for remote control and monitoring, adding a layer of convenience. This system supports underfloor heating and heat pump convectors (HPC), making it adaptable to various heating and cooling needs. Its monobloc setup allows for installation under windows, providing a space-saving solution without compromising performance. The Altherma 3 Monobloc is equipped with an integrated 3 kW heater, providing additional heating capacity during extremely
low outdoor temperatures. This backup heater also serves as a safeguard in case of unit malfunction and offers freeze protection for the outdoor water piping during winter. This ensures that the system remains operational and efficient even in the harshest conditions, providing peace of mind and consistent comfort. Overall, the Daikin Altherma 3 Monobloc offers a comprehensive solution for heating and cooling needs, combining advanced technology with user-friendly design. Its energy efficiency, low noise operation, and versatile application options make it a top choice for both residential and commercial settings. Whether for new installations or upgrades, this unit delivers reliable performance and superior comfort. Key Product Features: Separate back-up heater kit Possible to combine with domestic hot water Energy efficient heating and cooling system based on air to water heat pump technology Possible to combine with domestic hot water W-LAN
cartridge connection (optional) Monobloc all-in-one concept including hydraulic parts 1 Phase 220-240V Class 11 Heating and Cooling Specification: COP 4.83 , 3.66 Compressor component Main power supply Phase 1N~ Voltage V 400 Dimensions Unit Depth 460 mm Height 870 mm Width 1380 mm Fan Air flow rate Heating High 55.8 m³/min Heater capacity Step 1 3 kW Heating capacity Nom. 10.6 , 9.82 kW Operation range Domestic hot water Ambient Min. 35 °CDB Water side Min. 55 °C Heating Water side Min. 60 °C Power input Heating Nom. 2.18 , 2.68 kW Power supply Frequency Hz 50 Name W1 Phase 3~ Voltage V 400 Refrigerant Charge 3.8 kg 2.57 tCO2Eq GWP 675 Type R-32 Space heating Average climate water outlet 35°C General SCOP @ 4.64 Seasonal space heating eff. class A+++ Average climate water outlet 55°C General SCOP @ 3.32
Seasonal space heating eff. class A++ Weight Unit 149 kg
Key Details
- Brand / Vendor: Daikin Air Conditioning
- Product SKU: EBLA11D3V3
- MPN / Model: EBLA11D3V3
- Category: Daikin Air Conditioning Altherma Air Source Heat Pump
- Parent Category: Daikin Air Conditioning
- Condition: New
- Availability: InStock
