Daikin Air conditioning Multi 4MXS80E Heat Pump Inverter FCQG35F Cassette (3.5Kw/12000Btu) A+ 240V~50Hz
Daikin Air conditioning Multi 4MXS80E Heat Pump Inverter FCQG35F Cassette (3.5Kw/12000Btu) A+ 240V~50Hz is listed for TieDex store sale under Daikin MXS Multi Air Conditioning Inverter Heat Pump A+++. The brand/vendor is Daikin Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview

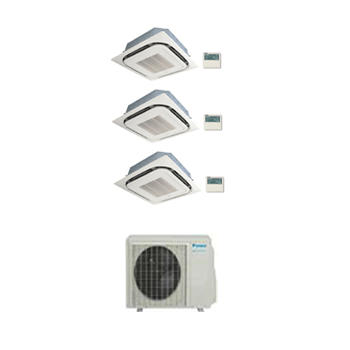

Includes: 1 x 4MXS80E 8.00kW / 25000 Btu Condensing unit 3 x FCQ35F 3.5kw / 12000 Btu Heat pump wall mounted Indoor Unit 3 x Remote controllers 3 indoor units on 1 outdoor condensing unit, Variable capacity multi air conditioning system A+ rated The variable capacity multi systems are ideal for light commercial and residential applications, having the highest CoP up to 3.65 and low start currents, ideal where there is limited power supply. The Inverter outdoor units are suitable for 3 connected indoor units, depending on the model. Each indoor unit is connected directly by a pair of small diameter refrigerant pipes to the outdoor unit. There are no branch joints involved. All connected indoor units operate in the same mode, i.e. either all Heating, or all Cooling. There are many permutations of connectible indoor units to each outdoor
unit. These are listed below. The cooling and heating data is based on all connected units operational at the same time at full load. In practice the load in each room is unlikely to be at 100% continuously, so the available spare capacity is then shared to other units accordingly. Daikin air conditioning has been manufacturing multi systems for residential applications for many years. The latest state-of-the-art Inverter technology is now applied to the range, delivering exceptionally high efficiency, as well as variable individual unit control for stable and comfortable conditions. Record CoP (Coefficient of Performance) This has been dramatically increased, up to a record 3.65 on some models. This means the system can deliver 3.65kW of heating, whilst consuming only 1.0kW of electrical power. This has been achieved by combining advanced Daikin technology with R410A. OUTDOOR UNIT: Model -
4MXS80E Power source 1 ph 240v Type Inverter COOLING (nominal) max. kW 8.00 (1.0~8.0) HEATING (nominal) max. kW 9.6 (0.95~9.6) E.E.R. n/a Energy label in heating A Energy label in cooling A C.o.P 3.65 Exterior dimensions (mm) 770x900x320 Net weight kg 72 Power Source Rating MCB A 20A Refrigerant max piping length m 70 4 X pipe service connections Pipe sizes - 4 x 1/4", 2 x 3/8"/1/2" , 2 x 5/8 Product Key Feature's: • High CoP, up to record 3.65 • 1 Outdoor unit saving space • Energy saving inverter • New advanced technology control • Infra-red controller with wall mounting bracket • Reduced height slim construction • Pipe runs up to 6 0 metres total • Low noise – 26dBA on smaller models • Back-up switch for loss of controller • Cold draft prevention on heat pump
start up • Fault diagnosis • Auto re-start after power interruption • PRE-CHARGED WITH REFRIGERANT for up to 15 metres pipe length INDOOR UNITS: Power source 1 ph 240V Type Inverter controlled COOLING (nominal) max. kW 3.5 / 12000 BTU HEATING (nominal) max. kW 4.2 / 14000 BTU UK Cooling (max) kW 3.2 UK Sensible Cooling kW 4 E.E.R. Energy label in heating A Energy label in cooling A C.o.P 3.41 ECA - Yes Exterior dimensions (mm) 254x840x840 Panel dimensions (mm) 950c950x288 Net weight kg 18 Sound Pressure Level* (cooling) dB(A) 28 / 34.5 Sound Pressure Level* (heating) dB(A) 28 / 34.5 PDF Data: Normal 0 MicrosoftInternetExplorer4 /* Style Definitions */ table.MsoNormalTable {mso-style-name:"Table Normal"; mso-tstyle-rowband-size:0; mso-tstyle-colband-size:0; mso-style-noshow:yes; mso-style-parent:""; mso-padding-alt:0cm 5.4pt 0cm 5.4pt; mso-para-margin:0cm; mso-para-margin-bottom:.0001pt; mso-pagination:widow-orphan; font-size:10.0pt; font-family:"Times New Roman";}
Key Details
- Brand / Vendor: Daikin Air Conditioning
- Product SKU: 4MXS80E-4351
- MPN / Model: 4MXS80E FCQG35F
- Category: Daikin MXS Multi Air Conditioning Inverter Heat Pump A+++
- Parent Category: Daikin Air Conditioning
- Condition: New
- Availability: InStock
- TieDex UK
