Mitsubishi Electric Air Conditioning MSZ-HR50VF Classic Wall Mounted 5Kw/18000Btu Install Pack
Mitsubishi Electric Air Conditioning MSZ-HR50VF Classic Wall Mounted 5Kw/18000Btu Install Pack is listed for TieDex store sale under Mitsubishi Electric Air Conditioning MSZ-HR Classic Wall Mount. The brand/vendor is Mitsubishi Electric Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview

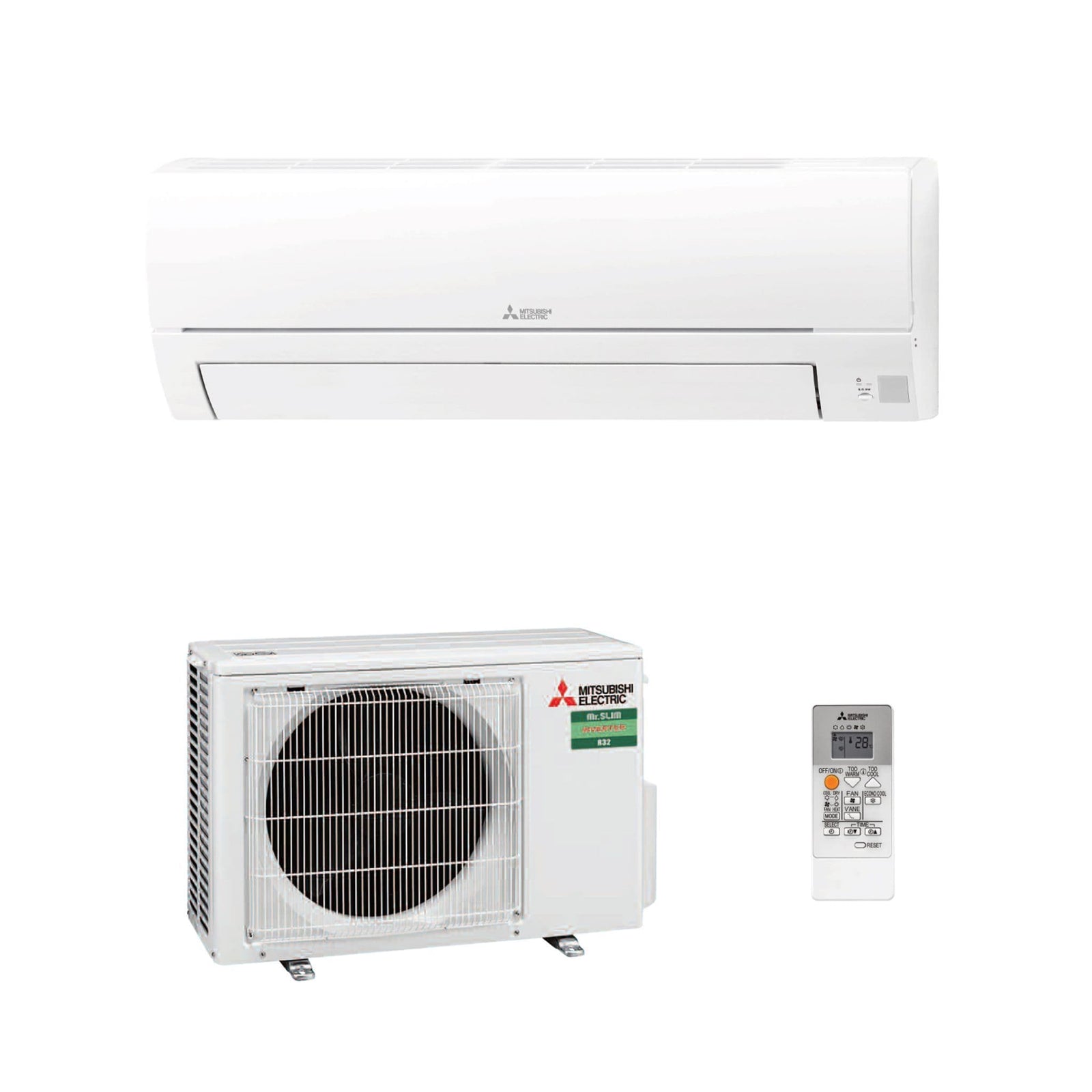

A++ Energy rated product This Kit Includes: 1 x Indoor MSZ-HR50VF R32 unit 1 x Outdoor MUZ-HR50VF OUTDOOR Unit R32 1 x Ir Controller 15 Meters x 1/4 inch coil pipe. 15 Meters x 1/2 inch coil pipe. 8 x Isoline (1/4 x 3/8) insulation 2 meter lengths Black 8 x Isoline (1/2 x 3/8) insulation 2 meter lengths Black Wall Bracket: BJ TYPE 2 BRACKETS 90Kg Mitsubishi Electric’s range of classic, R32, flat panel wall mounted models make use of inverter technology, whilst providing extremely good value for money, costing approximately 20% less than equivalent models. Mitsubishi Electric’s classic MSZ-HR R32 range of high specification "Classic" flat panel wall mounted models make use of the latest Mitsubishi Electric inverter compressor technology. Designed specifically for comfort cooling and heating, these units have extremely quiet sound levels, whilst also delivering economical
air conditioning, with improved EER figures. Ideal for use in any size room, many units come equipped with a wide-angle airflow system, as well as an automatic swing vane, allowing airflow to be extended to every corner of a room. Designed to heat or cool small to medium sized applications, the M Series range provides a versatile, yet affordable air conditioning solution. Extremely quiet sound levels whilst also delivering economical air conditioning with improved SCOP / SEER figures and also quiet (as low as 21dBA* On smaller models). Unlike conventional models with a grilled air intake, wall mounted models feature a smoothly contoured, flat panel finish with a top air intake that not only improves aesthetics, but also helps to reduce noise as the heat exchanger area is fully covered. This is as a result of the multi-angled heat exchanger
having a modified fin shape that reduces air resistance, producing a smoother, quieter flow of air. Alongside this, the wide diameter of the fan produces greater airflow at lower fan speeds and the uneven pitch between each fan blade helps to eliminate unwanted noise. Key Product Feature's: High SCoP, up to record 5.7 R32 Advanced technology control Infra-red controller Slim construction Pipe runs up to 20 metres Extremely quiet sound levels whilst also delivering economical air conditioning with improved SCOP / SEER figures Auto re-start after power interruption PRE-CHARGED WITH REFRIGERANT for up to 7 metres pipe length Easy cleaned & serviced. Full ECA tax allowance Optional Wi-Fi interface now available with this model Silver-ionised air purifying filter as standard Fault diagnosis Technical Specification: MSZ-HR - INDOOR UNITS MSZ-HR50VF CAPACITY (kW) Heating (nominal) 5.40 (1.4-6.5) Cooling (nominal) 5.00 (1.3-5.0) Heating
(UK) 4.48 (1.16-5.39) Cooling (UK) 4.96 (1.29-4.96) SHF (nominal) 0.73 COP / EER (nominal) 3.48 / 2.44 SCOP / SEER (BS EN14825) 4.30 / 6.50 ErP ENERGY EFFICIENCY CLASS Heating/Cooling A+ / A++ AIRFLOW (l/s) Heating/Cooling - Lo-Mi-Hi-SHi 102-138-187-242 / 107-153-187-218 PIPE SIZE mm (in) Gas 9.52 (3/8”) Liquid 6.35 (1/4”) SOUND PRESSURE LEVEL (dBA) Heating/Cooling - Lo-Mi-Hi-SHi 27-34-41-47 / 28-36-40-45 SOUND POWER LEVEL (dBA) 60 DIMENSIONS (mm) Width x Depth x Height 838 x 228 x 280 WEIGHT (kg) 9 ELECTRICAL SUPPLY Fed by Outdoor Unit FUSE RATING (BS88) - HRC (A) 6 INTERCONNECTING CABLE No. CORES 4 MUZ-HR - OUTDOOR UNITS MUZ-HR50VF SOUND PRESSURE LEVEL (dBA) Heating/Cooling 51 / 50 SOUND POWER LEVEL (dBA) Cooling 64 WEIGHT (kg) 35 DIMENSIONS (mm) Width x Depth x Height 800 x 285 x 550 ELECTRICAL SUPPLY 220-240v, 50Hz PHASE Single SYSTEM
POWER INPUT (kW) Heating/Cooling (nominal) Heating/Cooling (UK) 1.55 / 2.05 1.40 / 1.62 STARTING CURRENT (A) 9.0 SYSTEM RUNNING CURRENT (A) Heating/Cooling [MAX] 6.9 / 9.0 [9.6] FUSE RATING (BS88) - HRC (A) 16 MAINS CABLE No. CORES 3 MAX PIPE LENGTH (m) 20 MAX HEIGHT DIFFERENCE (m) 12 CHARGE REFRIGERANT (kg) / CO2 EQUIVALENT (t) - R32 (GWP 675) 0.80 / 0.54 MAX ADDITIONAL REFRIGERANT (kg) / CO2 EQUIVALENT (t) - R32 (GWP 675) 0.26 / 0.18 PDF Data: Wi-fi module: Mitsubishi Electric Air Conditioning MAC-557IF MELCLOUD WiFi Connection Interface
Key Details
- Brand / Vendor: Mitsubishi Electric Air Conditioning
- Product SKU: MSZ-HR50VF-inst
- MPN / Model: MSZ-HR50VF-inst
- Category: Mitsubishi Electric Air Conditioning MSZ-HR Classic Wall Mount
- Parent Category: Mitsubishi Electric Air Conditioning MS Wall Unit A+, A++,A+++
- Condition: New
- Availability: InStock
- TieDex UK
