Panasonic Air Conditioning Elite Ducted Heat Pump Inverter+ S-140PN1E5A 14Kw/48000Btu 240V~50Hz
Panasonic Air Conditioning Elite Ducted Heat Pump Inverter+ S-140PN1E5A 14Kw/48000Btu 240V~50Hz is listed for TieDex store sale under Panasonic Air Conditioning Low Static Pressure Ducted Heat Pump. The brand/vendor is Panasonic Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview

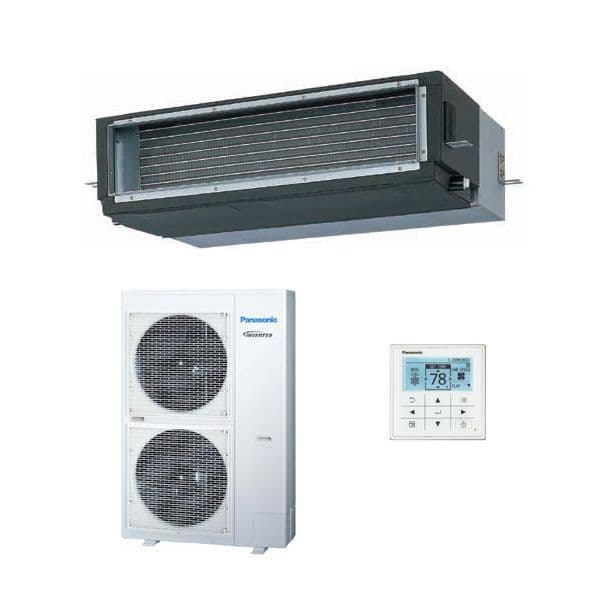

This kit includes: 1 x S-140PN1E5A indoor ducted unit 1 x U-140PE2E5A Outdoor unit A rated DOUBLE FAN 1 x CZ-RTC4 Hard wired controller Perfect for areas where you want concealed air conditioning these units can be seated above a ceiling for hidden temperature control. Panasonic air conditioning's Elite A energy rated systems offer options not available on basic systems including Econav energy controls and super energy efficiency in low and high ambient environments. The DC inverter swing compressor is very quiet in operation and will work down to -5 DegC on cooling and -20 DegC on heating. The low static pressure ducted also offers a selection of temperature sensor at the indoor unit or wired remote control and a useful weekly On/Off timer (6 settings per day and 42 per week). The outdoor units are neat, sturdy and can
easily be mounted on a roof or terrace or simply placed against an outside wall. Quiet operation, down to 45dBA sound pressure level, unlike conventional systems providing greater room temperature stability and comfort with limited noise. Key Product Features: Maximum efficiency Inverter system R410A environmentally friendly refrigerant gas Automatic start after a power cut Automatic fan operation mode Soft dry operation mode Hot start mode Selection of temperature sensor at indoor unit or wired remote control Weekly On/Off timer (6 settings per day and 42 per week) Wired remote control Installation using existing pipes Selectable static pressure Self-diagnostic function Condensation control Ultra compact indoor unit Option of wireless controller + Econav PIR Technical Specification: PACi Elite Single Phase Three Phase Power rating 14.0kW 14.0kW Kit KIT-140PN1E5A4 KIT-140PN1E8A4 Timer remote controller CZ-RTC4 CZ-RTC4 Cooling capacity Nominal (Min - Max) kW 14.0
(3.3 - 15.5) 14.0 (3.3 - 15.5) Nominal (Min - Max) 3.01 (3.30 - 2.50) B 3.01 (3.30 - 2.50) A SEER 2) — — Pdesign — — Input power cooling Nominal (Min - Max) kW 4.65 (1.00 - 6.20) 4.65 (1.00 - 6.20) Annual energy consumption (ErP) 3) kWh/a — — Heating capacity Nominal (Min - Max) kW 16.0 (4.1 - 18.0) 16.0 (4.1 - 18.0) Heating capacity at -7/-15°C 4) kW 14.24 14.24 COP 1) Nominal (Min - Max) W/W 3.41 (3.90 - 2.95) B 3.41 (3.90 - 2.95) B SCOP 5) W/W — — Pdesign at -10°C kW — — Input power heating Nominal (Min - Max) kW 4.69 (1.05 - 6.10) 4.69 (1.05 - 6.10) Annual energy consumption (ErP) 3) kWh/a — — Indoor Unit S-140PN1E5A S-140PN1E5A External static pressure 6) Nominal (Min - Max) Pa
50 (10 - 80) 50 (10 - 80) Air volume Hi / Med / Lo m³/min 40 / 37 / 30 40 / 37 / 30 Moisture removal volume L/h 9.0 9.0 Sound pressure 74 Hi / Med / Lo dB(A) 46 / 44 / 39 46 / 44 / 39 Sound power Hi / Med / Lo dB 67 / 65 / 60 67 / 65 / 60 Dimensions 8) H x W x D mm 250 x 1200 x 650 250 x 1200 x 650 Net weight kg 41 41 Outdoor Unit U-140PE1E5A U-140PE1E8A Power source V 220 / 230 / 240 380 / 400 / 415 Recommended fuse A 16 16 Connection mm² 2.5 2.5 Current Cooling A 20.5 / 20.1 / 19.5 6.95 / 6.60 / 6.35 Heating A 20.6 / 20.2 / 19.6 7.00 /
6.65 / 6.45 Air volume Cooling / Heating m³/min 135 / 120 135 / 120 Sound pressure Cooling / Heating (Hi) dB(A) 54 / 55 54 / 55 Sound power Cooling / Heating (Hi) dB 71 / 71 71 / 71 Dimensions H x W x D mm 1416 x 940 x 340 1416 x 940 x 340 Net weight kg 98 98 connections Liquid pipe Inch (mm) 3/8 (9.52) 3/8 (9.52) Gas pipe Inch (mm) 5/8 (15.88) 5/8 (15.88) Piping length range / Elevation difference (in/out) 9) m 5 - 75 / 30 5 - 75 / 30 Pipe length for additional gas / Additional gas amount m / g/m 30 / 50 30 / 50 Refrigerant (R410A) kg / TCO2 Eq. 3.40 / 7.0992 3.40 / 7.0992 Operating range Cooling Min ~ Max °C -15 ~ +46 -15
~ +46 Heating Min ~ Max °C -20 ~ +24 -20 ~ +24 Accessories: CZ-RTC5A Wired remote control with Econavi button CZ-RWSK2 + CZ-RWSC3 Wireless remote controller CZ-RE2C2 Simplified remote controller PAW-GRDSTD40 Outdoor elevation platform 400 x 900 x 400mm PAW-WTRAY Tr a y f or condenser water compatible with base gr ound support PAW-GRDBSE20 Outdoor base gr ound support f or noise and vibration absorption (600 x 95 x 130mm, 500kg) CZ-140DRS1 P ACi Drain kit to suit all P ACi system Other Control Options: PA-AC-WIFI-1 Full bidirectional Wifi interface for Internet control PAW-IR-WIFI-1 IR Wifi interface for Internet control CZ-CAPRA1 Generation interface to ECOi control integration ECONav PIR energy saving option These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if
you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
Key Details
- Brand / Vendor: Panasonic Air Conditioning
- Product SKU: S-140PN1E5A
- MPN / Model: S-140PN1E5A
- Category: Panasonic Air Conditioning Low Static Pressure Ducted Heat Pump
- Parent Category: Panasonic Air Conditioning
- Condition: New
- Availability: InStock
