Powrmatic SQ180H9 Electric Quartz Horizontal Industrial Infrared Heater 18Kw/61000Btu 380-415V~50Hz
Powrmatic SQ180H9 Electric Quartz Horizontal Industrial Infrared Heater 18Kw/61000Btu 380-415V~50Hz is listed for TieDex store sale under Infrared Heaters. The brand/vendor is Powrmatic. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview

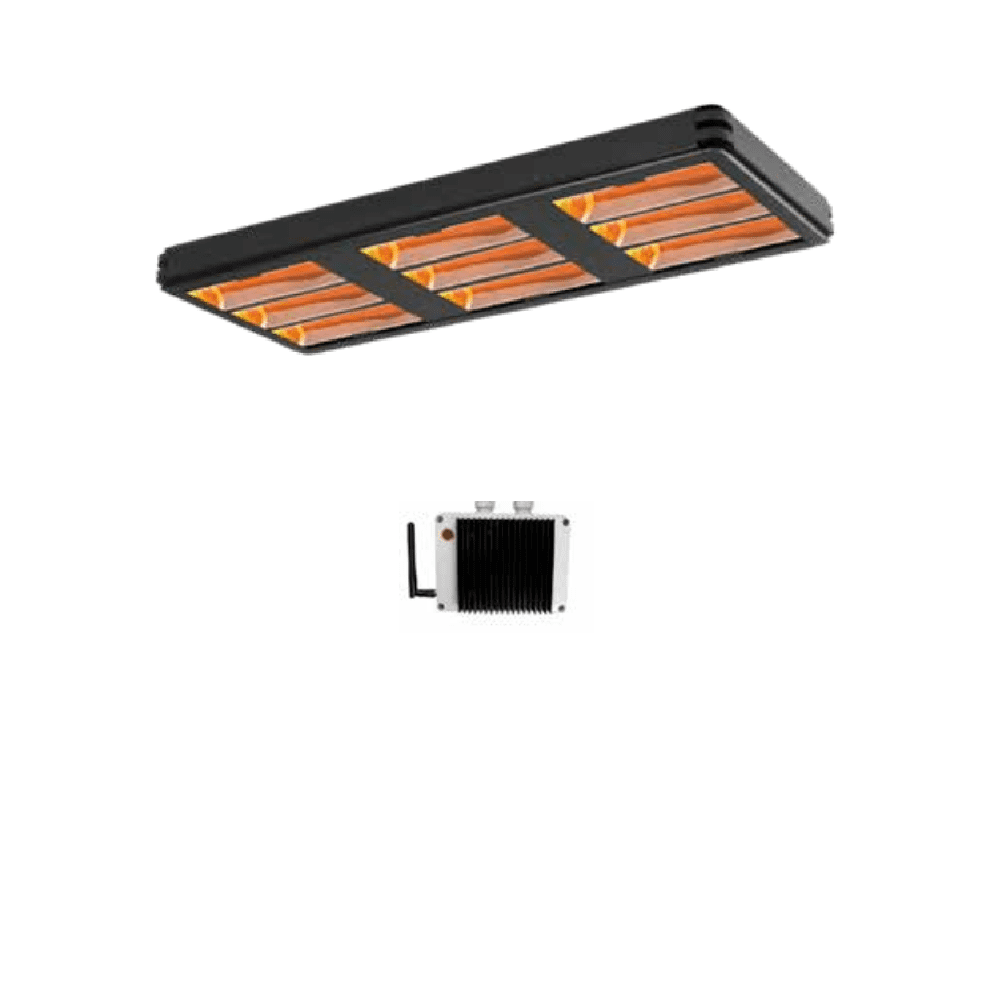

This Kit Includes: 1 × Powrmatic SQ180H9 Electric Quartz Horizontal Industrial Infrared Heater 1 × Quartz infrared heating lamp assembly (9 × 2kW) 1 × Heavy-duty mounting bracket assembly 1 × Protective heater guard and aluminium reflector housing 1 × Factory-wired three-phase electrical connection terminal 1 × SQ90RVC 9kW Remote Variable Heater Controller Ultra High Output Quartz Infrared Heater for Large Industrial Buildings The Powrmatic SQ180H9 Electric Quartz Infrared Heater is the largest and most powerful unit in the Powrmatic SQ electric infrared heater range. Designed for very large industrial and commercial environments, the heater uses high-intensity shortwave quartz infrared technology to deliver instant radiant heat directly to people, machinery and working surfaces rather than heating the surrounding air volume. Infrared heating is particularly effective in buildings such as warehouses, factories and distribution centres where conventional warm-air heating systems often
struggle due to high ceilings, open doors and large air volumes. By directing heat precisely into the occupied work zones, infrared heaters provide immediate comfort while reducing wasted energy. The SQ range has been developed specifically for zonal heating applications. Instead of heating the entire building volume, these heaters focus warmth exactly where workers are located, improving comfort while reducing energy consumption. The SQ range is designed for large spaces such as factories and warehouses and can achieve significant energy savings compared with traditional heating systems. The SQ180H9 model produces 18kW of radiant heating output using nine high-intensity quartz heating lamps. The horizontal heater configuration produces a long linear heating pattern that is ideal for heating warehouse aisles, production lines and large industrial workspaces where heat needs to follow the working area. Key Product Features: • Electric quartz shortwave infrared
radiant heating technology • Heat output: 18kW / 61,000Btu • High-capacity heater designed for very large industrial spaces • Instant heat output with no warm-up delay • Direct radiant heat to people and working surfaces • Heavy-duty aluminium reflector housing with protective guard • Wall mounted or suspended installation options • IP65 rated construction for demanding industrial environments • Compatible with SQ90RVC remote heater controller • Energy-efficient zonal heating solution for large buildings Technical Specifications: Model: SQ180H9 Product Type: Electric Quartz Infrared Heater Heat Output: 18kW / 61,000Btu Heating Technology: Quartz shortwave infrared radiant heating Electrical Supply: 380-415V~50Hz 3Ph Heating Elements: 9 × 2kW quartz infrared lamps Coverage Area: Approximately 85 m² Mounting Type: Horizontal wall mounted or suspended installation Weight (without guard): Approx. 16 kg Minimum Mounting Height: Approx. 6 m installation height recommended Applications: • Warehouses and distribution
centres • Industrial workshops • Production line workstations • Loading bays and dispatch areas • Agricultural buildings • Retail warehouses Accessories: Part Code Description £ SQ30RVC 3kW Remote Variable Heater Controller 882 SQ60RVC 6kW Remote Variable Heater Controller 882 SQ90RVC 9kW Remote Variable Heater Controller 882 SQ/1Z 1 Zone Master Controller 900 SQ/3Z 3 Zone Master Controller 900 SQ180/3Z 18kW 3 Zone Industrial Heater Controller 3947 SQ240/3Z 24kW 3 Zone Industrial Heater Controller 4067 SQ270/3Z 27kW 3 Zone Industrial Heater Controller 4500 SQ40HC Heater Controller 4kW 896 SQ60HC Heater Controller 6kW 1187 SQ/PIR PIR Switch (12v) 102 SQ40TL Time Lag Switch 4kW (1–60min) 213 SQ60TL Time Lag Switch 6kW (1–60min) 273 SQ/ETL External Time Lag (used with 18, 24 and 27kW Controller) 171 SQ15HL/382 Industrial Heater Lamps 1.5kW 240v – 382mm 167 SQ20HL/382 Industrial Heater Lamps 2.0kW 240v – 382mm
167 SQ15HL/530 Industrial Heater Lamps 1.5kW 240v – 530mm 208 SQ20HL/530 Industrial Heater Lamps 2.0kW 240v – 530mm 208 Part Code Used On £ SQ2/GRILLE SQ30H2, SQ30V2, SQ40H2, SQ40V2 125 SQ3/GRILLE SQ45/H3, SQ45V3, SQ60H3, SQ60V3 185 SQ6/GRILLE SQ90H6, SQ120H6 370 SQ9/GRILLE SQ135H9, SQ180H9 555 Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
Key Details
- Brand / Vendor: Powrmatic
- Product SKU: SQ180H9
- MPN / Model: SQ180H9
- Category: Infrared Heaters
- Parent Category: Heating
- Condition: New
- Availability: InStock
