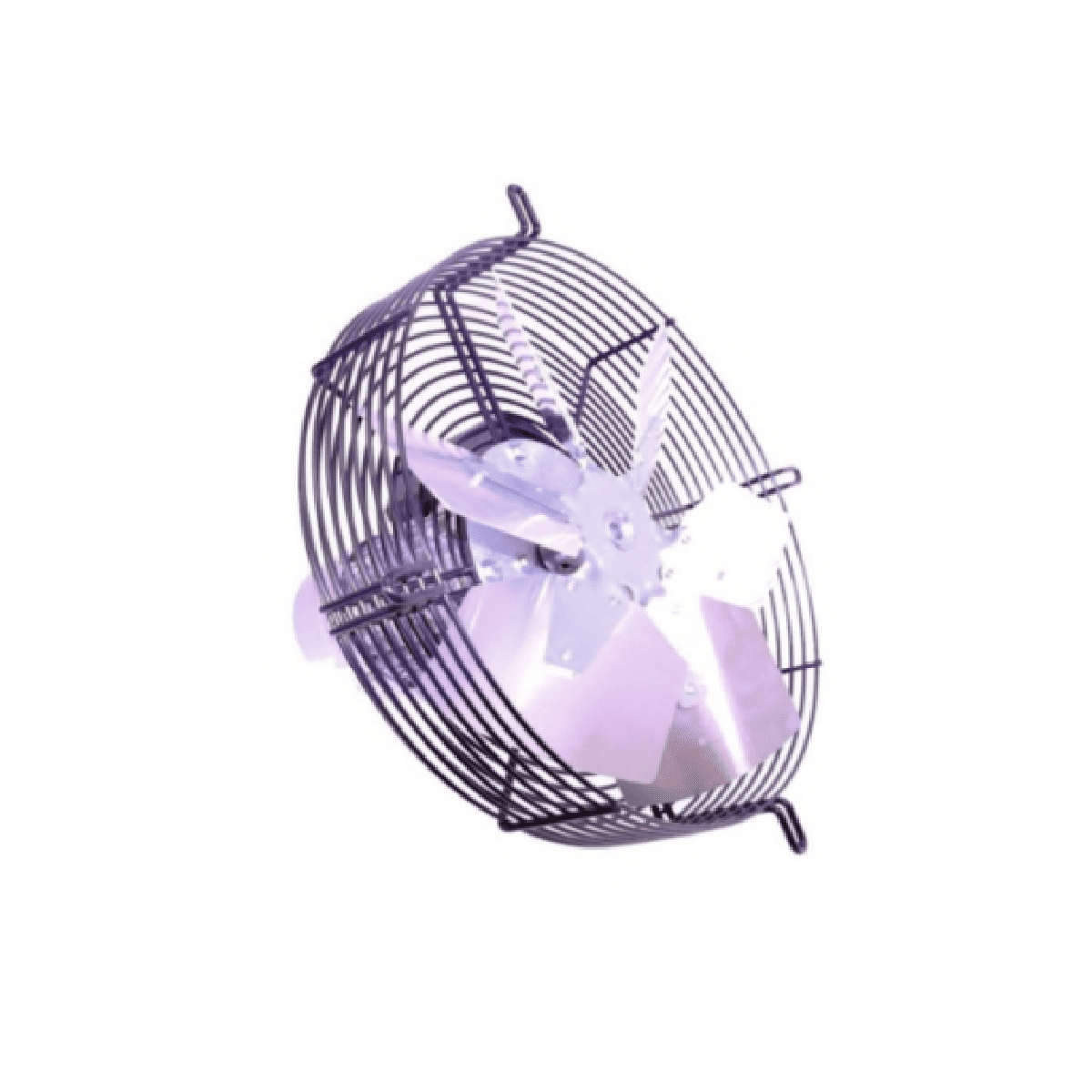

PSP GMAHD1-630B4-0.55 Guard-Mounted Axial Fan Basket Guard 630mm 230V~50Hz/60Hz
PSP GMAHD1-630B4-0.55 Guard-Mounted Axial Fan Basket Guard 630mm 230V~50Hz/60Hz is listed for TieDex store sale under PSP Double Inlet Centrifugal Blower Fan. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview
Introduction Heavy-duty guard-mounted axial fan engineered for powerful, reliable airflow in HVAC and industrial ventilation systems. Supplied with a basket guard and configured for blowing airflow , this unit features a 4-pole (B4) low-speed PSC motor offering smooth, quiet operation and continuous-duty performance, ideal for condenser and cooling applications. Key Product Features Single-phase 230V~50/60Hz PSC motor, 4-pole (low-rpm) configuration Airflow supplied: Blowing (basket-guard configuration) Quiet operation (~1350 rpm) for steady airflow Class F insulation; IP54 protection; totally enclosed motor Sealed-for-life ball bearings for minimal maintenance Continuously rated “air-over-motor” duty Heavy-duty welded wire guard for robust and secure installation Technical Specifications Part number: GMAHD1-630B4-0.55 Phase / supply: 1PH 230V~50/60Hz Motor type / poles: PSC, 4-pole, single speed Motor RPM: ≈1350 rpm Input power: 550 W (0.55 kW) Blade diameter: 630 mm Guard type: Basket guard Guard dimensions (X min / Y
max): 685 mm / 720 mm Guard depth: 90 mm Insulation / IP rating: Class F / IP54 Bearings: Sealed-for-life ball bearings Operating temperature: −30 °C to +40 °C
Key Details
- Brand / Vendor: Tiedex
- Product SKU: GMAHD1-630B4-0
- MPN / Model: GMAHD1-630B4-0
- Category: PSP Double Inlet Centrifugal Blower Fan
- Parent Category: Generic Fan Motors HVAC and Ref
- Condition: New
- Availability: InStock
