Samsung Air Conditioning AC100RN4PKG/EU 360 Deg Round Cassette Heat pump 10Kw/34000Btu R32 A++ 3Ph
Samsung Air Conditioning AC100RN4PKG/EU 360 Deg Round Cassette Heat pump 10Kw/34000Btu R32 A++ 3Ph is listed for TieDex store sale under Samsung Air Conditioning 360 Deg Round Ceiling Cassette Inverter Heat Pump. The brand/vendor is Samsung Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview

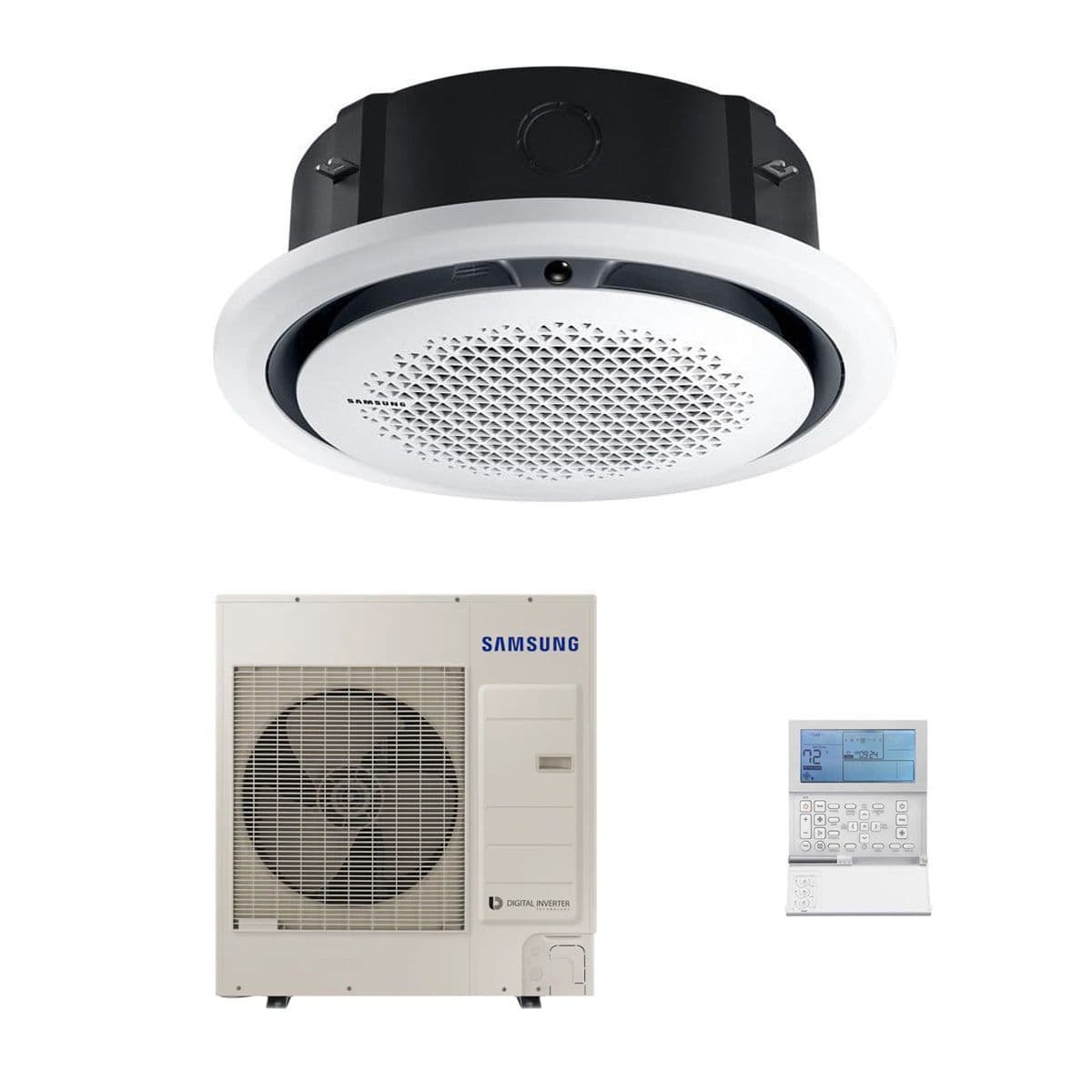

This Kit Includes: 1 x AC100RN4PKG/EU 10kW Samsung CAC 360 Cassette R32 Internal unit 1 x PC4NUNMAN Samsung 360 CAC/DVMS Round Cassette Panel (options available) 1 x AC100RXADNG/EU 10kW Samsung CAC H/Pump Inv O/door R32 1ph 380-415V~50Hz 1 x MWR-WG00JN Samsung NASA LCD Premium Hard Wired Controller (Ir controller optional) Award Winning Technology Samsung air conditioning has received 38 design awards for this 360 Blade-less Cassette, including one Gold award, at the iF Design Awards 2016 (International Forum Design Awards), which recognises excellence in craftsmanship and quality of products. The Samsung 360 cassette air conditioning heat pump inverter system is an innovative circular cassette which brings a new style and performance to air conditioning. The blade-less construction reduces interference to give improved airflow while the circular design directs air more evenly to every corner of the room. The Samsung 360
Blade-less Cassette features a stylish panel and intuitive LED display that allow users to change the air flow direction depending on preference. Users can choose from three settings including horizontal, vertical, and control individual zone air flow direction to enjoy comfortable cooling. The circular-shaped 360 Blade-less Cassette is Samsung’s latest innovative design for air conditioning. The groundbreaking blade-less circular design allows for even cooling with no loss in air flow, setting a new standard for multi-directional cassette units. Unique Air Flow: Unlike traditional 4-way cassette units, the cutting-edge design of the 360 Blade-less Cassette delivers a zero angle airflow with our patented booster fan technology. It guides the air to generate different air flow patterns and evenly distributes cool air to ensure every corner of the room is maintained at the same temperature. The air volume is maintained at 100%
to deliver an optimal even cooling performance without creating cold draft. The Samsung 360 Blade-less Cassette combines revolutionary performance with an elegant design which blend in and enhance any setting. Users have a choice of either black or white, square or round panel, to fit the air conditioner within the ceiling or exposed, and with any finishing such as wood, concrete, wallpaper and paint, offering ultimate flexibility to suit the style of any room. Key Product Features: Circular design blends harmoniously into any interior design 360 deg airflow from circular heat exchanger distributes air evenly No interference from blade Booster fan uses pressure fan uses pressure to direct airflow LED display of operating modes Bladeless discharge thanks to three small booster fans. Built-in condensation drain pump (750 mmH2O). High ceiling mode for heights up to 4.6 m (12.8/14.0 kW), 3.9
m (11.2 kW), 3.5 m (4.5~9.0 kW). SPi Ioniser (optional). Circular or square cassette panel in white or black Technical Specification: Model Name Indoor Unit AC100RN4PKG/EU Outdoor Unit AC100RXADNG/EU System Mode - HEAT PUMP Performance Capacity (Min/Std/Max) Cooling kW 3.0 / 10.0 / 12.0 Btu/h 10,240 / 34,120 / 41,000 Heating kW 2.2 / 11.2 / 15.5 Btu/h 7,500 / 38,210 / 52,900 Efficiency EER Cooling - 3.08 COP Heating - 3.50 SEER (Cooling Energy Grade) - 6.8 (A++) SCOP (Heating Energy Grade) - 4.3 (A+) Pdesignh kW 5.3 Piping Connections Liquid Pipe Type Flare connection Φ, mm (inch) 9.52 (3/8) Gas Pipe Type Flare connection Φ, mm (inch) 15.88 (5/8) Heat Insulation - Both liquid and gas pipes Piping length (ODU-IDU) Standard m 5 Max. m 50 Elevation m 30 Chargeless m 30 Wiring connections Communication Min. mm2 0.75
Remark - F1, F2 Refrigerant Type - R32 Factory Charging kg 2.7 tCO₂e 1.82 Indoor Unit Power Supply Ø, #, V, Hz 3 380-415,50 Heat Exchanger Type - F&T Material Fin - Al Tube - Cu Fin Treatment - Green Hydrophile Fan Type - Turbo Quantity EA 1 Air Flow Rate Cooling (H/M/L) m³/min 31.2 / 25.5 / 19.8 l/s 520 / 425 / 330 Heating (H/M/L) m³/min 31.2 / 25.5 / 19.8 l/s 520 / 425 / 330 Fan Motor Type - BLDC Output W x n 97 x 1 External (Outdoor Unit) Net Weight(kg)74.0 kg Shipping Weight (kg)79.0 kg Net Dimensions (WxHxD) (mm)940 x 998 x 330 mm Shipping Dimensions (WxHxD) (mm)995 x 1096 x 426 mm Operating Temp. Range Cooling (℃)-15~50 ℃ Heating (℃)-20~24 ℃ Panel model: PC4NUDMAN (options can be selected) Panel Net Weight (kg) 3.6kg
Shipping Weight (kg) 6.0kg Net Dimensions (WxHxD) (mm) 1000 x 66 x 1000mm Shipping Dimensions (WxHxD) (mm) 1093 x 85 x 1083mm Drain Pump: Built In Drain Pump Max: Lifting Height/Displacement 750/24 Accessories: PC4NUDMAN360 Cassette Fascia Panel - Square WHITE PC4NBDMAN360 Cassette Fascia Panel - Square BLACK PC4NBNMAN360 Cassette Fascia Panel - Round BLACK MSD-CAN1 Virus Doctor S-Plasma Ion Kit for 4way & 360 Cassette AR-KH03E360 Wireless Remote controller (SPLIT/DVM) MWR-WG00JNLCD COLOUR PREMIUM Wired Controller (NASA) MWR-WE13N Standard Multi Function Wired Remote Controller (7 Day Schedule) - NASA SPLIT & DVM & WIND-FREE MWR-SH11N Simplified Wired Remote Controller (NASA) MIM-H04ENNEW Wi-fi Receiver 2.0 for NASA SPLIT/DVM IU These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation
service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
Key Details
- Brand / Vendor: Samsung Air Conditioning
- Product SKU: PC4NUDMAN-15394
- MPN / Model: AC100RN4PKG/EU AC100RXADNG/EU
- Category: Samsung Air Conditioning 360 Deg Round Ceiling Cassette Inverter Heat Pump
- Parent Category: Samsung Air Conditioning
- Condition: New
- Availability: InStock
