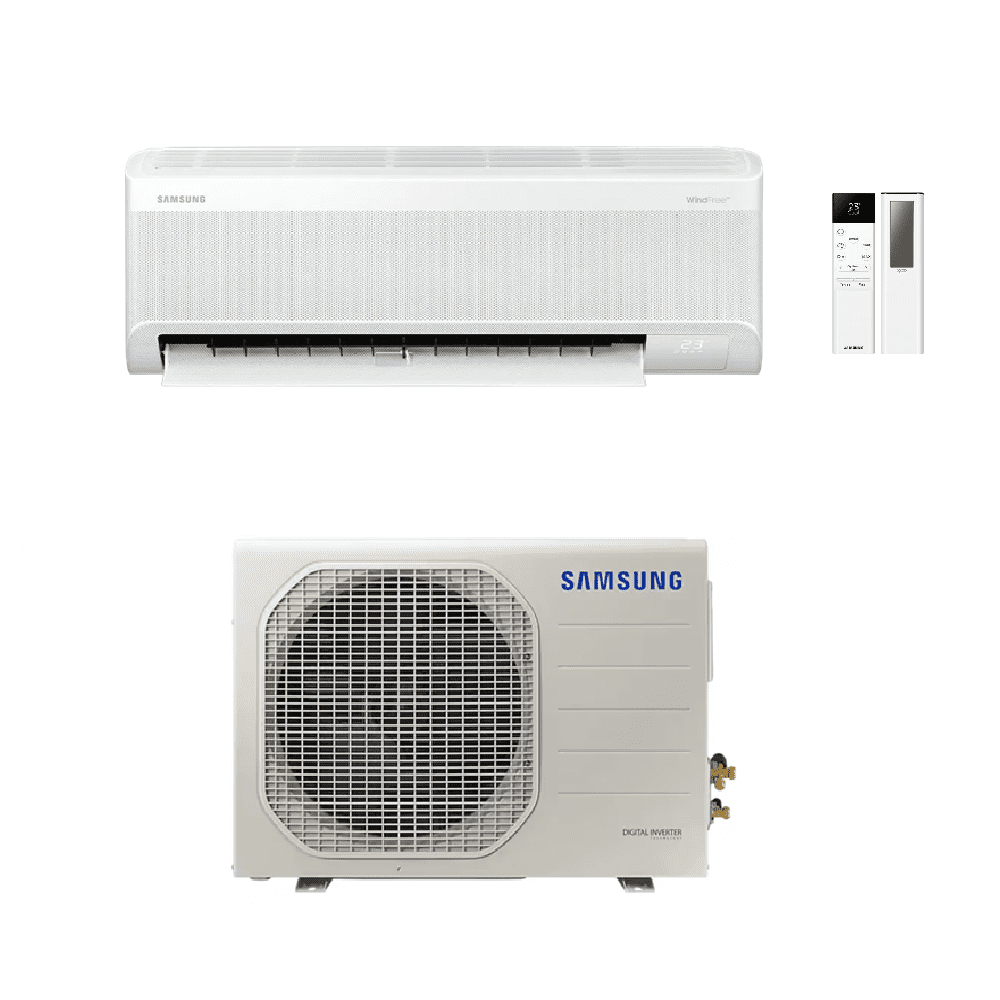

Samsung Air Conditioning AR60F18C1AWXEU AR60F18C1AWNEU COMFORT WindFree S2 5kW Install Kit
Samsung Air Conditioning AR60F18C1AWXEU AR60F18C1AWNEU COMFORT WindFree S2 5kW Install Kit is listed for TieDex store sale under Samsung Air Conditioning Elite WindFree S2 Wall Mounted Heat Pump Wi-Fi R32 A++. The brand/vendor is Samsung Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview
This Kit Includes: • 1 × Samsung Outdoor Unit AR60F18C1AWXEU (5.0kW Cooling / 6.0kW Heating) • 1 × Samsung WindFree™ S2 Indoor Unit AR60F18C1AWNEU • 1 × SolarCell Remote Controller (Battery-Free OLED Controller) • 1 × Installation Manual & User Guide • 1 × Wall Mounting Plate (Indoor Unit) • 1 × Standard Wireless Connectivity (SmartThings App Ready) 15 Meters x 1/4 inch coil pipe. 15 Meters x 1/2 inch coil pipe. 8 x Isoline (1/4 x 3/8) insulation 2 meter lengths Black 8 x Isoline (1/2 x 3/8) insulation 2 meter lengths Black 1 x Wall Bracket BJ TYPE 2 BRACKETS 90KG LOAD Premium draft-free comfort with advanced AI control, ultra-quiet operation and Samsung’s WindFree™ airflow technology. The Samsung COMFORT WindFree™ S2 5.0kW system delivers powerful and highly efficient climate control for larger domestic rooms and commercial environments. Using
Samsung’s WindFree™ technology, the indoor unit distributes air through 23,000 micro-holes to eliminate cold drafts and maintain a gentle, even airflow. This ensures a stable and comfortable room temperature while significantly reducing noise levels. Samsung’s AI Auto Comfort system continuously monitors indoor and outdoor temperatures, humidity, user settings and behavioural patterns to determine the most efficient operating mode. Whether cooling, heating or using WindFree™ mode, the system automatically adapts to maintain optimal comfort while reducing energy wastage. AI Energy Mode further enhances this, limiting compressor output to maintain temperatures within ±2°C of the setpoint for improved efficiency. Every system is supplied with the advanced SolarCell remote controller — a lightweight, battery-free, solar-powered handset with USB-C charging and an OLED display. Additional intelligent features include Freeze Wash coil cleaning, SmartThings Wi-Fi connectivity, ultra-low noise performance and a modern, easy-clean front panel
design. The result is a dependable, high-performance solution suitable for demanding residential and small commercial applications. With a cooling capacity of 5.0kW and heating output of 6.0kW, this model is particularly suited to larger living rooms, open-plan areas, offices and retail spaces requiring reliable year-round climate control. Key Product Features: • WindFree™ cooling with 23,000 micro-holes for draft-free comfort • AI Auto Comfort for intelligent, self-optimising operation • AI Energy Mode for predictive, energy-saving performance • SolarCell OLED remote — battery-free with solar and USB-C charging • Ultra-quiet operation: as low as 23 dB(A) in WindFree™ mode • Freeze Wash cleaning function for improved heat exchanger hygiene • SmartThings Wi-Fi connectivity for app and voice control • A++ energy efficiency for cooling and heating • Fast Cooling mode for rapid pull-down in warm conditions • Dry Comfort Mode for dehumidification
without excessive cooling • Uses R32 refrigerant for reduced environmental impact • Clean, modern indoor appearance with removable front panel • Max pipe length 30m (15m charged), pipe sizes 1/4" & 1/2" • Indoor unit blows air gently with no direct cold draft • Ideal for larger domestic rooms, open-plan environments and offices Technical Specifications: Model: AR60F18C1AWXEU (Outdoor) / AR60F18C1AWNEU (Indoor) Cooling Capacity: 5.0kW (1.6–6.7kW) Heating Capacity: 6.0kW (1.3–8.0kW) SEER: 7.2 (A++) SCOP: 4.1 (A+) Sound Pressure (Indoor): 41 / 25 dB(A) (High / Silent) Sound Pressure (WindFree™): 27 dB(A) Sound Pressure (Outdoor): 60 dB(A) Dimensions (Indoor): 1,055 × 299 × 215 mm Dimensions (Outdoor): 880 × 638 × 310 mm Net Weight (Indoor): 12.3 kg Net Weight (Outdoor): 36.8 kg Refrigerant: R32 Pipe Connections: Liquid 1/4" / Gas 1/2" Piping Length: Max 30m Height Difference: 15m Max Power Supply:
220–240V / 1Ph / 50Hz Fuse Rating: 13A Cooling Power Input: 1390 W Heating Power Input: 1610 W Disclaimer: Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only. Accessories: Model Description MIM-A00N Interface to connect NASA wired remote controller to RAC High Wall (Check suitability) MWR-WG01JN LCD COLOUR PREMIUM Wired Controller (NASA) MIM-R10N Interface to connect RAC High Wall to Central Control network (Check outdoor suitability) These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11
(5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
Key Details
- Brand / Vendor: Samsung Air Conditioning
- Product SKU: AR60F18C1AWXEU-20208
- MPN / Model: AR60F18C1AWXEU AR60F18C1AWNEU
- Category: Samsung Air Conditioning Elite WindFree S2 Wall Mounted Heat Pump Wi-Fi R32 A++
- Parent Category: Samsung Air Conditioning Wall Mounted Heat Pumps
- Condition: New
- Availability: InStock
