Samsung Air Conditioning MSP Duct AC100BNMPKG/EU AC100BXAPNG/EU Concealed Heat Pump 10kW A+ 3Ph
Samsung Air Conditioning MSP Duct AC100BNMPKG/EU AC100BXAPNG/EU Concealed Heat Pump 10kW A+ 3Ph is listed for TieDex store sale under Samsung Air Conditioning Ducted Heat Pump Inverter MSP. The brand/vendor is Samsung Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview

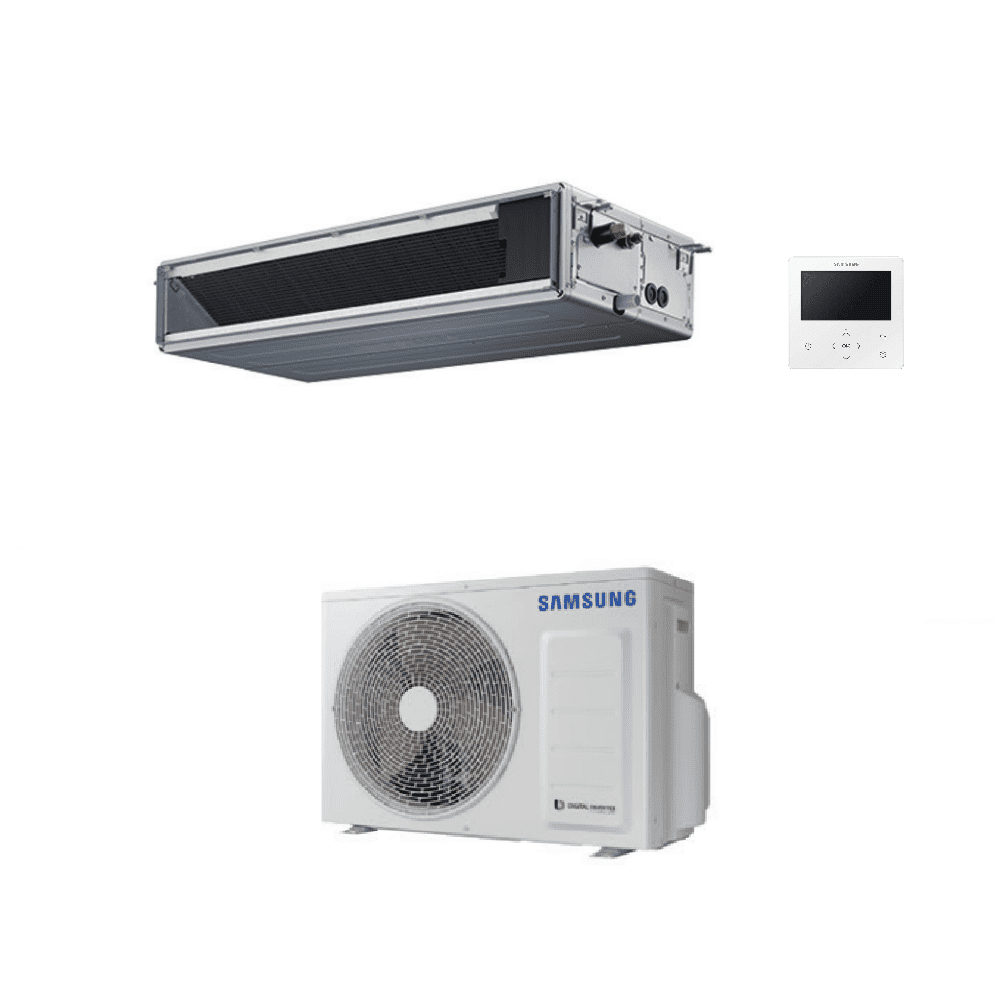

This Kit Includes: • 1 × Samsung Duct S Indoor Unit AC100BNMPKG/EU • 1 × Samsung Inverter Heat Pump Outdoor Unit AC100BXAPNG/EU (Three Phase) • 1 × LCD Colour Wired Controller (NASA) – MWR-WG01JN • Long-life washable permanent air filter • Built-in condensate drain pump • Installation and user documentation High-Performance Ducted Heat Pump for Commercial Applications The Samsung Duct S Heat Pump 10.0kW system is a powerful, discreet air conditioning solution designed for commercial and light industrial environments where concealed installation and consistent air distribution are essential. Installed above ceilings or within service voids, the ducted indoor unit allows conditioned air to be distributed evenly via ductwork, keeping occupied spaces comfortable without visible wall or ceiling units. Ideal for offices, retail units, restaurants, hotels, meeting rooms and larger commercial spaces, this system delivers reliable cooling and heating using Samsung’s
advanced inverter technology combined with environmentally responsible R32 refrigerant. The result is stable temperature control, reduced energy consumption and quieter operation even under varying load conditions. The Duct S range features automatic external static pressure (ESP) control, allowing installers to optimise airflow to suit different duct layouts. A built-in condensate drain pump and washable permanent filter simplify installation and ongoing maintenance, making this system a practical choice for professional HVAC installations. Supplied with a premium wired controller as standard, the system offers precise control over temperature, fan speed and operating modes, ensuring comfort is maintained efficiently throughout the day. Key Product Features: • Concealed ducted air conditioning system • Suitable for commercial and light industrial applications • Digital inverter heat pump technology for efficient operation • Automatic external static pressure control (ESP) • Built-in condensate drain pump as standard •
Long-life washable permanent air filter • Even air distribution via ducted supply • R32 refrigerant with lower environmental impact • Wired LCD controller supplied as standard • Compatible with optional Wi-Fi and advanced control accessories Technical Specifications: Cooling Capacity: 10.0kW (4.0–12.8kW) Heating Capacity: 11.2kW (3.1–17.3kW) Energy Efficiency (Cooling): A++ Energy Efficiency (Heating): A+ SEER: 7.6 SCOP: 4.4 Indoor Unit Dimensions (W × H × D): approx. 1,200 × 300 × 700 mm Outdoor Unit Dimensions (W × H × D): approx. 940 × 998 × 330 mm Refrigerant Type: R32 Pipe Connections: Liquid 3/8", Gas 5/8" Maximum Pipe Length: 85 m Maximum Height Difference: 30 m Power Supply: 380–415V / 3Ph / 50Hz Fuse Rating: 20A per phase Compatible Accessories (Optional): • LCD Colour Wired Controller (NASA) – MWR-WG01JN • Touch Simplified Wired Remote Controller – WindFree™ (NASA) • Wi-Fi
Receiver 2.0 for NASA SPLIT/DVM Indoor Units • Wireless Remote Controller (High Efficiency CAC) • DUCT S Slim Wireless Signal Receiver Kit • Remote Temperature Sensor • Internal or External Drain Pump Options Disclaimer: Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only. These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
Key Details
- Brand / Vendor: Samsung Air Conditioning
- Product SKU: AC100BNMPKG/EU AC100BXAPNG/EU
- MPN / Model: AC100BNMPKG/EU AC100BXAPNG/EU
- Category: Samsung Air Conditioning Ducted Heat Pump Inverter MSP
- Parent Category: Samsung Air Conditioning
- Condition: New
- Availability: InStock
