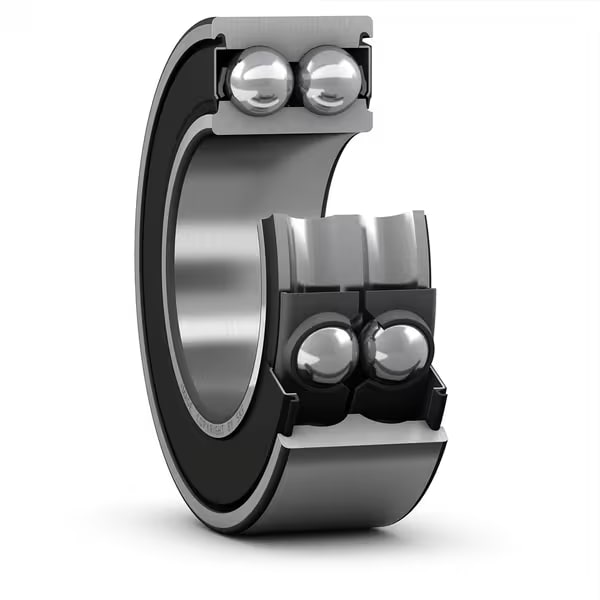

This angular contact ball bearing is designed to accommodate combined radial and axial loads in machinery used across automation, electronics and mechanical systems. Its sealed construction and double-row configuration provide a Compact solution for installations requiring sustained operational performance and protected internal components. The bearing’s materials and configuration suit integration into assemblies where controlled clearance and robust load capacity are required.
Features and Benefits
- 30° contact angle delivers improved axial load handling
Double-row arrangement increases load distribution capacity
Sealed end design protects internal components from contamination
Sheet metal cage reduces rotational friction and wear
CN internal clearance enables predictable preload adjustment
RoHS compliance supports environmentally constrained projects
Applications
- Suitable for spindle supports in small machine tools
Ideal for servo and positioning systems in automation
Used with gearboxes requiring combined load handling
Can be used for motor end-bearing in Compact drives
Used for rotary assemblies in electronic manufacturing equipment
What is the bearing’s maximum rotational capability?
It is rated to operate up to 4000 r/min under specified conditions, providing an upper speed limit for system design.
How does the bearing manage static loads during downtime?
The bearing’s static capacity is 64 kN, allowing it to resist sustained non-rotational loads without deformation.
What materials are employed for the rolling elements and rings?
Both the balls and the races are manufactured from steel, delivering consistent contact surfaces and hardness.
How does the bearing perform under dynamic loading?
It has a dynamic load capacity of 75 kN, which supports applications with frequent load cycles and varying directions.
Selection guidance
- Review the manufacturer specifications for compatibility with your equipment.
- Confirm the required dimensions and fitting arrangement before ordering.
- Check the intended operating conditions against the product documentation.
