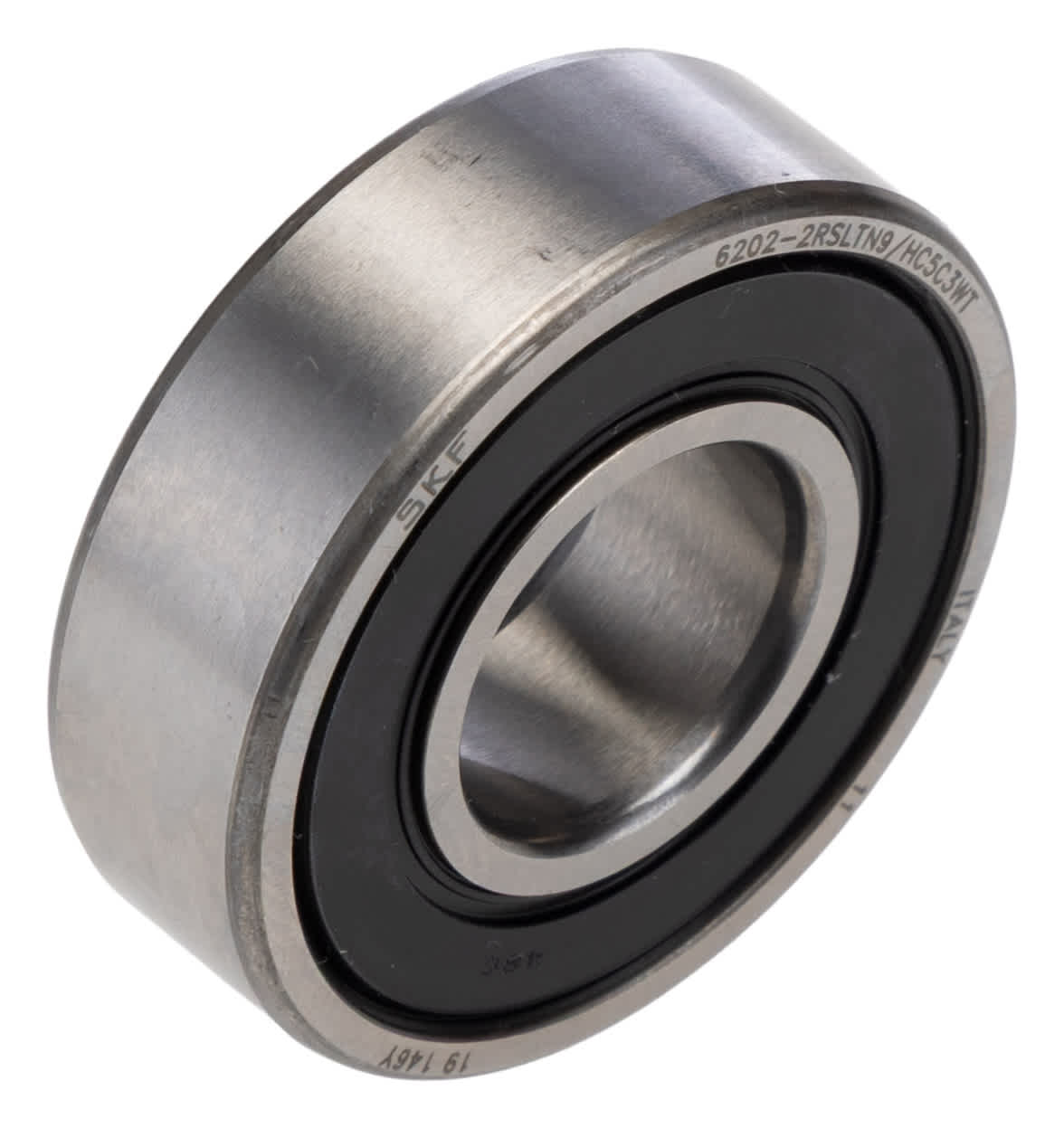

This ball bearing is a single-row deep-groove component designed for rotary support in Compact assemblies. It uses corrosion-resistant stainless steel for rolling elements and is sealed to limit contamination, making it suitable for continuous high-speed rotational applications where Compactness and durability are required.
Features and Benefits
- Sealed construction reduces ingress of contaminants and retains lubricant
Non-metallic cage lowers noise and accommodates thermal expansion
Internal C3 clearance permits reduced running torque at elevated speeds
Dynamic capacity of 7.8 kN supports sustained radial loads during operation
Limiting speed of 24,000 r/min enables high-speed rotation in driven shafts
Static load rating of 3.75 kN allows short-term resistance to shock loads
Applications
- Suitable for Compact motor shafts in small electric motors
Ideal for precision fans and high-speed blowers
Used with gearboxes requiring sealed bearing elements
Can be used for rotary sensors and instrumentation spindles
Suitable for conveyor idlers in restricted spaces
What bore and outer dimensions does it use?
It is built for a 15 mm internal bore and a 35 mm outer diameter.
How wide is the race to fit into shallow housings?
The race width measures 11 mm to suit Compact axial space constraints.
What material reduces corrosion risk in humid environments?
Rolling elements are MADE from stainless steel to offer enhanced corrosion resistance.
How does the internal clearance affect performance at speed?
The C3 internal clearance provides extra internal radial play to compensate for thermal growth at high rotational speeds.
What cage type is fitted and what is its advantage?
A non-metallic cage is fitted to reduce frictional damping and lower acoustic emission.
Selection guidance
- Review the manufacturer specifications for compatibility with your equipment.
- Confirm the required dimensions and fitting arrangement before ordering.
- Check the intended operating conditions against the product documentation.
