Toshiba Air Conditioning RAS-3M26G3AVG-E Multi Split 3 × Compact Mini Cassette RAS-M13S4MUVG-E
Toshiba Air Conditioning RAS-3M26G3AVG-E Multi Split 3 × Compact Mini Cassette RAS-M13S4MUVG-E is listed for TieDex store sale under Toshiba Air Conditioning RAS Multi Room Heat Pump Inverter. The brand/vendor is Toshiba Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview

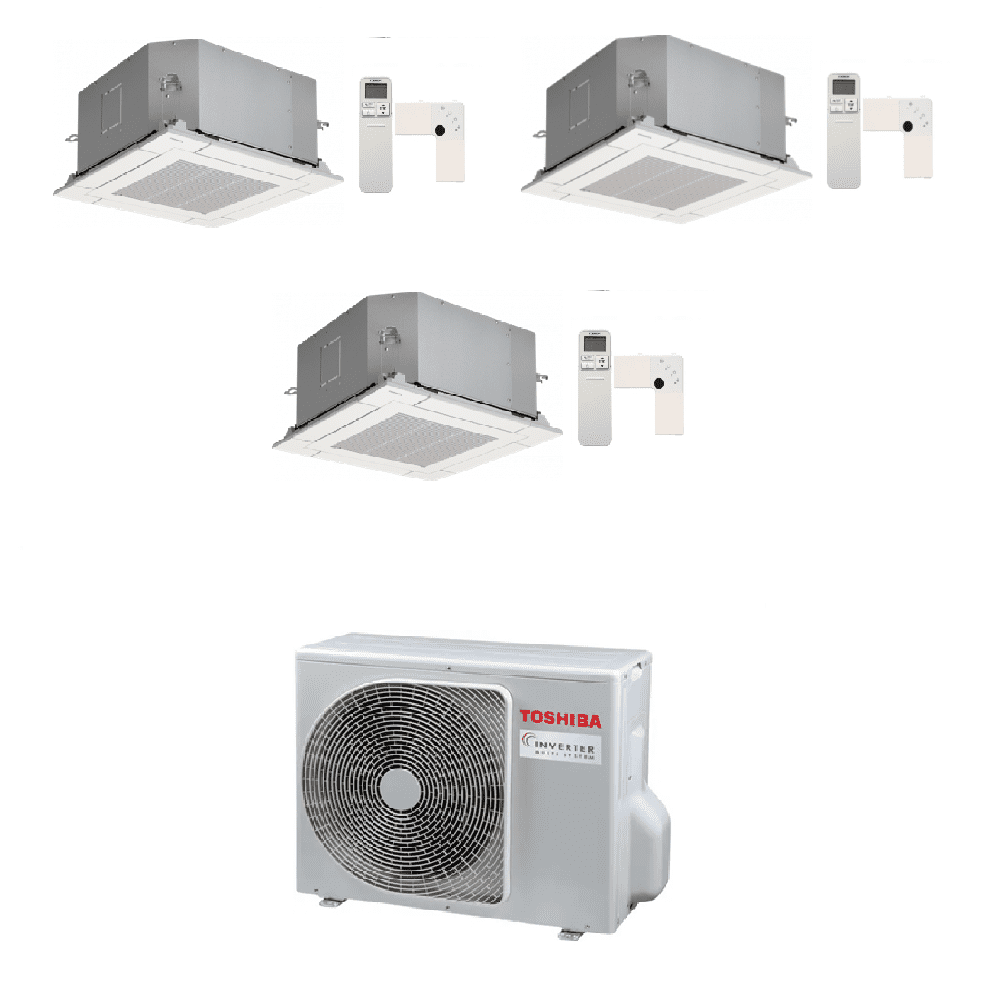

This Kit Includes: • Toshiba Outdoor Unit RAS-3M26G3AVG-E – 7.5kW Cooling / 9.0kW Heating • Toshiba Compact Mini Cassette RAS-M13S4MUVG-E – 3.5kW × 3 • Toshiba Fascia Panel RBC-UM21P-E × 3 • Toshiba Remote Controller RBC-AXU31UMP-E × 3 High-Efficiency Triple-Zone Cassette Climate Control for Professional & Residential Spaces This three-room multi-split system provides a premium balance of energy performance, installation flexibility and quiet, unobtrusive climate control. The RAS-3M26G3AVG-E outdoor unit delivers 7.5kW of cooling capacity and a strong 9.0kW heating output, supported by Toshiba’s DC twin-rotary inverter compressor, which ensures high efficiency even during partial-load operation. This makes the system ideal for real-world usage patterns where loads fluctuate throughout the day. The outdoor unit carries an impressive A+++ / A++ efficiency potential with R32 refrigerant, offering reduced environmental impact and lower running costs across residential, commercial and light-industrial environments. The
three RAS-M13S4MUVG-E mini cassettes installed in this configuration provide 3.5kW of cooling and 4.2kW of heating each, housed in a compact 600 × 600 ceiling footprint. Their slim 12mm fascia panel ensures a refined visual finish, while 360° airflow and individually controllable louvers deliver perfectly even air distribution throughout the room. Advanced comfort features include an integrated 85cm condensate lift pump, low-noise 5-speed fan operation, self-cleaning heat exchanger function and washable filters for improved air quality. Optional WiFi control and occupancy detection make this system suitable for modern smart-building management, reducing energy wastage while maintaining exceptional comfort in each individual zone. Key Product Features: • 3-room multi-split cassette configuration • Indoor units: 3 × 3.5kW cooling / 4.2kW heating • Outdoor unit: 7.5kW cooling / 9.0kW heating • A+++ / A++ efficiency potential with R32 refrigerant • DC twin-rotary inverter
compressor • Compact 600 × 600 cassette design with 12mm fascia panel • 360° airflow distribution with 4 independent louvers • 85cm condensate pump built in • Optional WiFi and occupancy sensor • 5-speed low-noise fan • Self-cleaning evaporator and washable dust filter • Ideal for offices, retail units, multi-room homes and refurbished properties Technical Specifications: Outdoor Unit – RAS-3M26G3AVG-E • Cooling capacity: 7.5kW • Heating capacity: 9.0kW • SEER/SCOP: 8.50 – 4.60 (A+++ / A++) • Dimensions (H×W×D): 890 × 900 × 320 mm • Weight: 67kg • Sound pressure: 53 / 45 dB(A) • Airflow (High): 3700–1028 m³/h • Refrigerant: R32 / 1.90kg • Max pipe length: 25/70 – 15 m • Flare connections: 3/8" × 1 + 1/2" × 2 + 1/4" × 3 • Power supply: 220–240V~50Hz • Interconnecting cable: (3C+E) Indoor Units – RAS-M13S4MUVG-E ×
3 • Cooling: 3.5kW • Heating: 4.2kW • UK Cooling (Total/Sensible): 3.42 / 2.74kW • UK Heating: 2.6kW • ID Dimensions: 244 × 575 × 575 mm • Panel Dimensions: 620 × 620 × 12 mm • Sound pressure: 27–34 dB(A) • Indoor airflow: 172–319 l/s • Refrigerant piping: 3/8" – 1/4" • Included controller: RBC-AXU31UMP-E • Included fascia: RBC-UM21P-E Performance Table: Comb A Comb B Comb C Capacity A (kW) Capacity B (kW) Capacity C (kW) Cooling Min (kW) Cooling Nom (kW) Cooling Max (kW) Power Min (W) Power Nom (W) Power Max (W) Operating Current (A) Pdc SEER Class EER Nom 13 13 13 2.33 2.33 2.33 2.0 7.0 9.0 350 1750 2300 7.97 7.0 8.50 A+++ 4.00 These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using
our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article 11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
Key Details
- Brand / Vendor: Toshiba Air Conditioning
- Product SKU: RAS-3M26G3AVG-E-3-RAS-M13S4MUVG-E
- MPN / Model: RAS-3M26G3AVG-E-3-RAS-M13S4MUVG-E
- Category: Toshiba Air Conditioning RAS Multi Room Heat Pump Inverter
- Parent Category: Toshiba Air Conditioning
- Condition: New
- Availability: InStock
