Toshiba Air Conditioning RAV-GM561ATP-E RAV-HM561KRTP-E High-Wall Digital Inverter 5Kw 1Ph
Toshiba Air Conditioning RAV-GM561ATP-E RAV-HM561KRTP-E High-Wall Digital Inverter 5Kw 1Ph is listed for TieDex store sale under Toshiba Air Conditioning RAS Wall Mounted Digital Heat Pump Inverter 1Ph and 3Ph. The brand/vendor is Toshiba Air Conditioning. This listing has been prepared with structured product information, clean import fields, image mapping, and SEO-ready content for online selling.
Product Overview

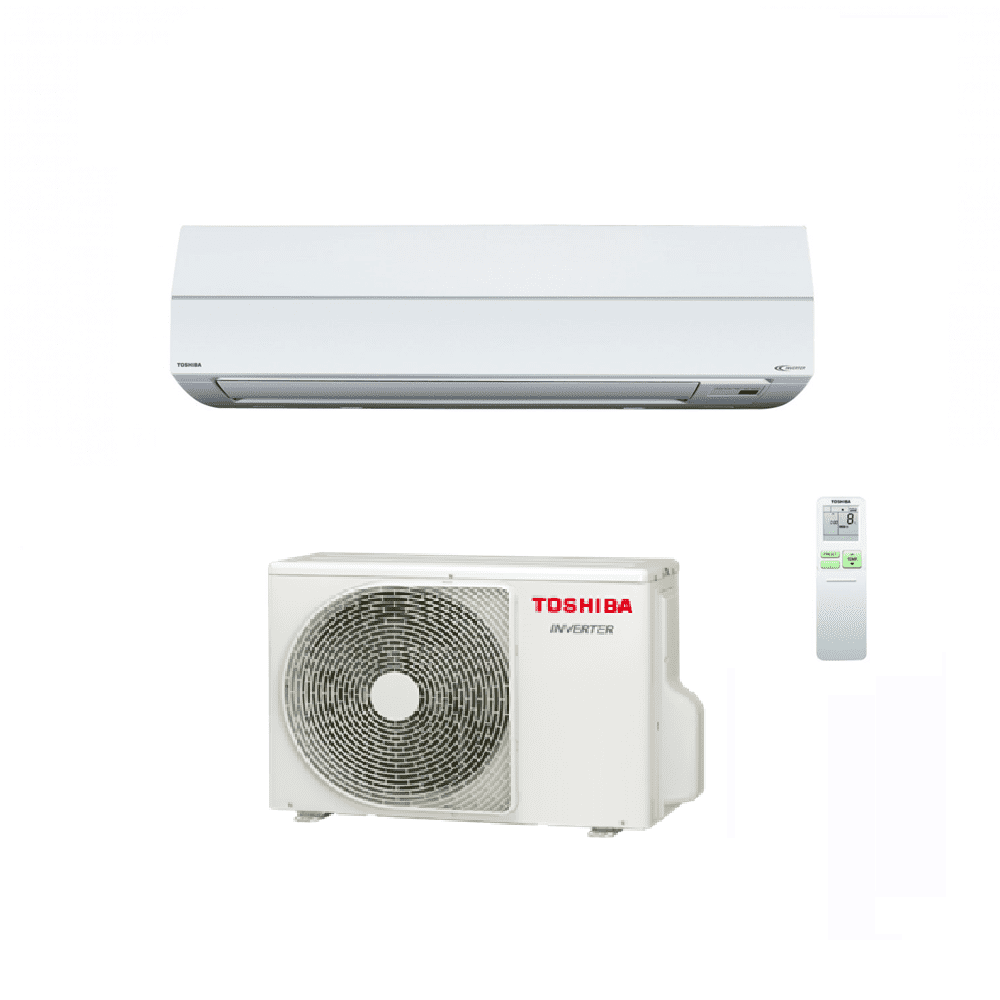

This Kit Includes: 1 × Toshiba RAV-HM561KRTP-E Digital Inverter High-Wall Indoor Unit 1 × Toshiba RAV-GM561ATP-E1 Digital Inverter Outdoor Heat Pump Unit 220-240V~50Hz 1 × Toshiba Wireless Remote Controller RBC-AMSU51E-ES (Supplied as Standard) The Toshiba RAV-HM561KRTP-E Digital Inverter High-Wall System provides a robust, energy-efficient solution for commercial applications requiring stylish, quiet and effective climate control. Designed for offices, restaurants, shops, hospitality settings and refurbishment projects, this high-wall unit combines a clean modern appearance with class-leading performance and low energy consumption. Using the latest Toshiba Digital Inverter compressor platform, the system delivers fast temperature response, stable modulation and strong seasonal energy performance. The indoor unit features improved air distribution, auto-louvre optimisation, enhanced filtration, mould-resistant self-cleaning coil design and quiet-mode operation for environments where noise control is essential. The RAV-GM561ATP-E1 outdoor unit provides 5.0 kW cooling and 5.3 kW heating, backed by
a high-efficiency power module and wide operating envelope suitable for UK commercial installations. Total/sensible capacities of 4.75 / 3.61 kW ensure reliable performance in real-world conditions, while airflow levels of up to 267 l/s help maintain consistent comfort across rooms. Ideal for commercial office suites, restaurants, reception areas and retail units, this system supports wired controls, group control configurations and flexible installation using existing R410A/R22/R407C pipework under Toshiba’s replacement-technology protocol. Key Product Features: 5.0 kW cooling / 5.3 kW heating output High efficiency: A++ cooling / A+ heating Quiet indoor operation: 42 / 39 / 35 dB(A) Auto-louvre mode for uniform airflow Self-cleaning coil and enhanced filtration system Slim profile high-wall design for professional interiors Compatible with wired and central control options Long pipe-run capability: up to 30 m Capable of operating in twin/triple/quad commercial multi-combinations Suitable for reuse of
existing refrigerant pipework (R410A/R22/R407C) Technical Specifications: Cooling / Heating: 5.0 kW / 5.3 kW UK Total / Sensible Cooling: 4.75 / 3.61 kW UK Heating: 3.79 kW Energy Label: A++ Cooling / A+ Heating Indoor Dimensions (H×W×D): 320 × 1050 × 250 mm Outdoor Dimensions (H×W×D): 550 × 780 × 290 mm Indoor Airflow (H–M–L): 267 – 231 – 189 l/s Outdoor Airflow (High): 2400 m³/h (≈667 l/s) Indoor Sound Pressure: 42 – 39 – 35 dB(A) Outdoor Sound Pressure: 46 / 48 dB(A) Power Supply: 220–240V / 1Ph / 50Hz Interconnecting Cable: (3C+E) Pipe Connections (Liquid/Gas): 1/2″ – 1/4″ Max Pipe Length: 30 m Max Height Difference: 20 m Charge-Free Pipe Length: 20 m Refrigerant Additional Charge: R32 / 1.1 kg / 20 g/m Options: Model Description Price RBC-AX31U(W)-E Wireless Receiver Kit for 4-Way Cassette £191 RBC-AX33UYP-E Wireless Receiver
Kit for 1-Way Cassette £57 RBC-AX31U-E Wireless Remote Controller Kit – Ceiling £211 RBC-AX31UMP-E Wireless Remote Controller Kit – Others (Exclude High Static Ducted) £317 RBC-AX31U1-E Wireless Receiver Kit for 4-Way Cassette £225 RBC-AX31UME-E Wireless Receiver Kit for Compact Cassette £141 RBC-AX31U4WE-E Wireless Remote Controller Kit for 2-Way Cassette £142 RBC-AX31U3MP-E Wireless Remote Controller Kit for Compact 4-Way White £185 RBC-AX31U3MPB-E Wireless Remote Controller Kit for Compact 4-Way Black £185 RBC-AX33U4PE-E Wireless Receiver Kit for 4-Way Cassette (MMU-UP, 1HP-E & RAV-HM, 1UP-E) £185 RBC-AX41U-E Wireless Receiver Kit for 4-Way Cassette £225 RBC-AXU33UPB-E Wireless Remote Controller Kit (IR receiver + handset), Black £173 Model Description Price RBC-AS41E Simplified Remote Controller £106 RBC-ASCU11-E Compact Remote Controller £76 RBC-ASCU32YP-E Compact Remote Controller £81 RBC-AMT32E Standard Remote Controller £126 RBC-AMT32E2 Standard Remote Controller £126 RBC-AMT54E Standard Remote Controller C/W 24/7 Schedule Timer £173 RBC-AMT52E
Premium Remote Controller C/W 24/7 Schedule Timer £173 RBC-AMT52U-E Premium Remote Controller C/W 24/7 Schedule Timer + Bluetooth £157 RBC-MTSC1 Mini Touch Screen Controller £272 RBC-MTSC2 Mini Touch Screen Controller C/W Schedule Timer £272 Model Description Price BMS-CT1280E Touch Screen Controller £4,189 BMS-CT2560U-E 256 Touch Screen Controller (Multi-Language) £6,143 BMS-CT5121E Touch Screen Controller £8,733 RBC-BP2 Black Pear BMS Controller £5,233 RBC-BP1 Black Pear Controller For BACnet £4,254 RBC-BPM1 Black Pear Controller For Modbus £4,254 These air conditioning units must be installed by an F-Gas qualified engineer. We can install the unit for you using our F-Gas Certified Engineers. Please note if you do not select our installation service we will not ship the unit until we have obtained evidence from you that you will have the unit installed by an F-Gas qualified engineer. This is a requirement of the Article
11 (5) EC/517/2014 on fluorinated greenhouse gases and The Fluorinated Greenhouse Gases Regulations 2015.
Key Details
- Brand / Vendor: Toshiba Air Conditioning
- Product SKU: RAV-GM561ATP-E RAV-HM561KRTP-E
- MPN / Model: RAV-GM561ATP-E RAV-HM561KRTP-E
- Category: Toshiba Air Conditioning RAS Wall Mounted Digital Heat Pump Inverter 1Ph and 3Ph
- Parent Category: Toshiba Air Conditioning RAS High-Wall Inverter Heat Pump Split
- Condition: New
- Availability: InStock
